Multipath Effects Explained: Why GNSS Positioning Fluctuates in Urban Areas

You may have noticed this before: your GNSS position works perfectly in open areas—but once you enter a city street, it starts to jump, drift, or fluctuate unexpectedly.

Why does this happen?

One of the main reasons is the multipath effect, a common but often overlooked source of GNSS positioning errors in urban environments.

What Is the GNSS Multipath Effect?

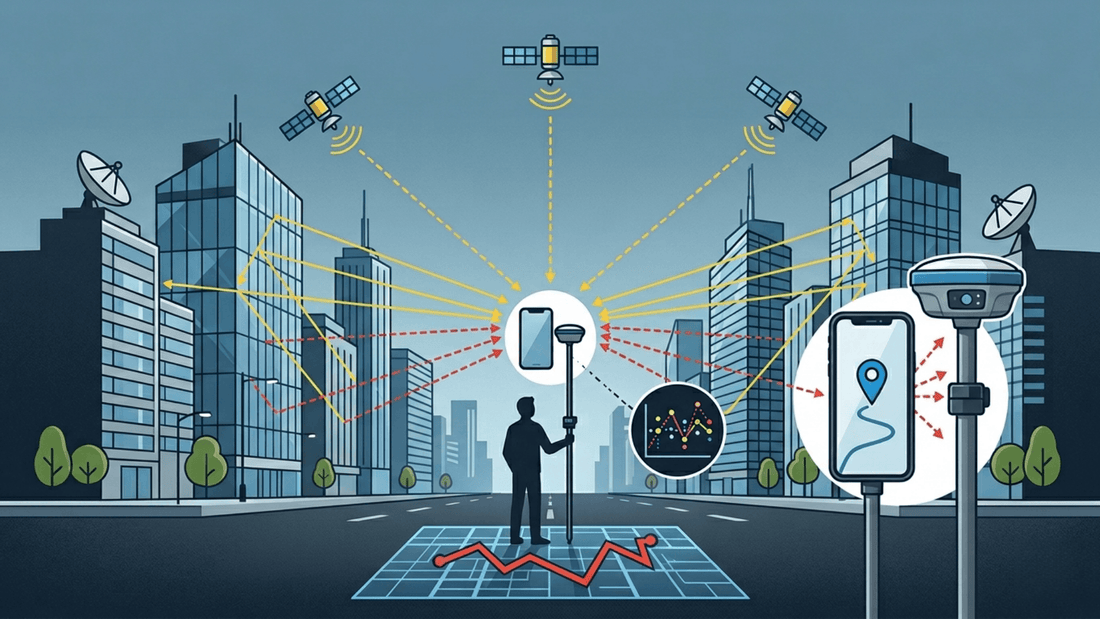

Multipath occurs when a GNSS receiver does not receive only the direct signal from a satellite, but also reflected signals from nearby surfaces such as:

• Buildings and glass facades
• Roads and vehicles
• Water surfaces
• Metal structures

These reflected signals interfere with the direct signal, causing time delays and phase shifts that can affect both horizontal and vertical positioning.

As a result, the receiver processes a combined distorted signal, leading to errors in:

• Pseudorange measurements
• Carrier phase tracking
• Position calculation

Why Multipath Is Worse in Urban Areas

Urban environments—especially so-called urban canyons—create ideal conditions for multipath errors.

Key reasons include:

1. Signal Reflections from Buildings

Tall buildings act like mirrors for GNSS signals, creating multiple delayed signal paths.

2. Limited Sky Visibility

Fewer visible satellites reduce geometric strength and increase error sensitivity.

3. Dense Reflective Surfaces

Glass, concrete, metal, and roads all contribute to strong signal reflections.

How Modern GNSS Systems Mitigate Multipath

Although multipath cannot be completely eliminated, modern GNSS receivers use multiple layers of mitigation.

1. Signal-Level Processing

Advanced receiver designs use techniques such as:

• Narrow correlator spacing
• Delay Lock Loop (DLL) optimization
• Multipath-resistant tracking loops

These improve the receiver’s ability to distinguish direct signals from reflected ones.

2. Measurement Quality Control

GNSS systems apply intelligent filtering strategies, including:

• SNR-based weighting
• Elevation angle masking
• Residual-based outlier detection

These methods reduce the influence of low-quality or corrupted signals on the final solution.

3. Multi-Constellation Tracking

By combining multiple GNSS systems such as:

• GPS
• BeiDou (BDS)
• Galileo
• GLONASS

Receivers gain:

• More satellites in view
• Better spatial geometry
• Higher redundancy against corrupted measurements

This significantly improves robustness in urban environments.

Conclusion: Why GNSS Still Works in Cities

Multipath is one of the most important challenges in GNSS positioning, especially in urban environments where signal reflections are unavoidable.

However, modern GNSS systems are not limited by this problem. Through advanced signal processing, multi-constellation tracking, and intelligent measurement control, multipath effects can be significantly reduced.

At Qtalis, our GNSS solutions are designed to maintain stable and reliable positioning even in complex urban environments, where signal conditions are far from ideal.
