How GNSS Signals Work: From Satellite Transmission to Centimeter-Level Positioning

Every time you check your position, your GNSS receiver is picking up signals that have traveled over 20,000 kilometers from space.

By the time they reach you, these signals are weaker than the noise inside your own device.

And yet, in many applications, we rely on them to deliver centimeter-level accuracy.

How is that possible?

To understand this, we need to look at how GNSS signals work—from transmission to positioning.

A GNSS Signal Doesn’t Tell You Where You Are

At its core, a GNSS signal is surprisingly minimal.

• It does not transmit your position
• It does not “locate” you
• It tells you one thing: when it left the satellite

From this precise timestamp, your receiver calculates distance based on signal travel time.

In other words, GNSS positioning is fundamentally a problem of timing precision—not direct location data.

Even tiny timing errors can translate into significant positioning errors.

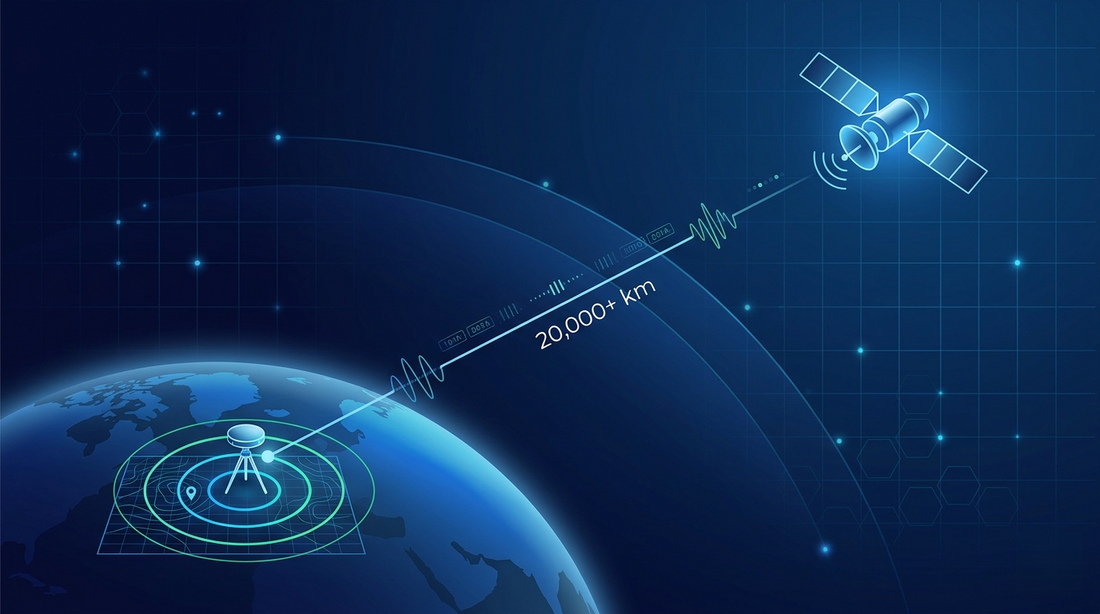

The Journey: 20,000 Kilometers of Imperfection

Before reaching your receiver, a GNSS signal undergoes a long and imperfect journey.

1. Transmission from Space

GNSS satellites orbit at approximately 20,000 km and continuously broadcast:

• High-precision time from onboard atomic clocks
• Satellite orbit (ephemeris) data

Everything begins with synchronization. Even nanosecond-level timing errors can lead to measurable positioning deviations.

2. Distortion in the Atmosphere

As signals travel through the atmosphere, they are affected by multiple error sources:

• Ionospheric delay → frequency-dependent distortion
• Tropospheric delay → influenced by weather conditions
• Multipath interference → reflections from buildings, terrain, and obstacles

By the time signals reach the ground, they are delayed, distorted, and sometimes duplicated.

3. Extremely Weak Signals at the Receiver

GNSS signals at the receiver level are extremely weak—typically around -130 dBm, weaker than internal electronic noise.

A GNSS receiver does not simply “receive” signals. It must detect structured information within noise.

Key factors that determine performance include:

• RF front-end sensitivity
• Signal acquisition and tracking algorithms
• Stability in dynamic or obstructed environments

This is where positioning quality begins.

How GNSS Signals Become Accurate Positioning

Despite these challenges, modern GNSS systems can still deliver high precision—not because the signals are perfect, but because the system compensates for their imperfections.

1. Multi-Frequency Observation

Different frequencies experience different ionospheric delays.

By tracking multiple frequencies, receivers can:

• Estimate and eliminate ionospheric errors
• Improve positioning accuracy
• Accelerate convergence time

2. Multi-Constellation Tracking

Modern GNSS receivers use multiple satellite systems simultaneously:

• GPS
• BeiDou (BDS)
• Galileo
• GLONASS

Benefits include:

• More visible satellites
• Improved positioning geometry
• Better performance in urban or obstructed environments

3. Advanced Error Correction (RTK / PPP)

High-precision GNSS positioning relies on advanced techniques:

• RTK (Real-Time Kinematic) → centimeter-level relative positioning
• PPP (Precise Point Positioning) → high-accuracy global positioning

These methods improve accuracy by:

• Modeling satellite orbit and clock error
• Correcting atmospheric delays in real time
• Resolving carrier-phase ambiguities

The result is a transformation from noisy signals into reliable positioning data.

From Signal to System-Level Performance

At a glance, all GNSS receivers use the same satellite signals. But performance differences come from how those signals are processed.

In professional applications—such as surveying, autonomous systems, and precision agriculture—positioning must be:

• Accurate
• Repeatable
• Reliable in real-world environments

This requires system-level capabilities:

• High-quality observation data
• Robust signal tracking
• Stable ambiguity resolution
• Continuous error modeling and correction

High-performance GNSS modules—such as Qtalis multi-frequency solutions—are designed to deliver these capabilities, ensuring consistent positioning even under challenging conditions.

Conclusion: From Signal to Trust

What arrives at your antenna is not a perfect answer.

It is a weak, distorted, and uncertain signal.

Accurate positioning depends on the ability to:

• Detect it
• Interpret it
• Correct it
• And ultimately, trust it

GNSS positioning is not just about receiving signals from space—it is about transforming uncertainty into precision.

Understanding how GNSS signals work helps you better evaluate positioning performance and choose the right solution for your application.
