Understanding DOP: The Hidden Factor Affecting GNSS Accuracy
· ⏱ 3 min read · 👁 viewsWhy does GNSS accuracy sometimes become unstable — even when signal strength looks good?
One important reason is DOP (Dilution of Precision).
In GNSS positioning, accuracy is not determined only by signal quality or satellite count. The spatial distribution of satellites across the sky also plays a critical role.
Even with strong signals, poor satellite geometry can amplify positioning errors and reduce solution reliability.
This geometric effect is described by DOP.
Understanding DOP helps explain:
- why RTK performance changes between environments
- why vertical accuracy is usually worse than horizontal accuracy
- why more satellites do not always guarantee better positioning
- and why GNSS performance can fluctuate even with strong signals
What Is DOP?
DOP (Dilution of Precision) is a unitless value that describes how satellite geometry amplifies GNSS measurement errors.
It is commonly expressed as:
Positioning Error ≈ DOP × Measurement Error
The measurement error itself may come from:
- atmospheric delays
- satellite clock bias
- receiver noise
- multipath interference
DOP does not create errors directly. Instead, it magnifies existing measurement uncertainties.
For example, even if measurement errors are relatively small, poor satellite geometry can significantly worsen the final positioning result.

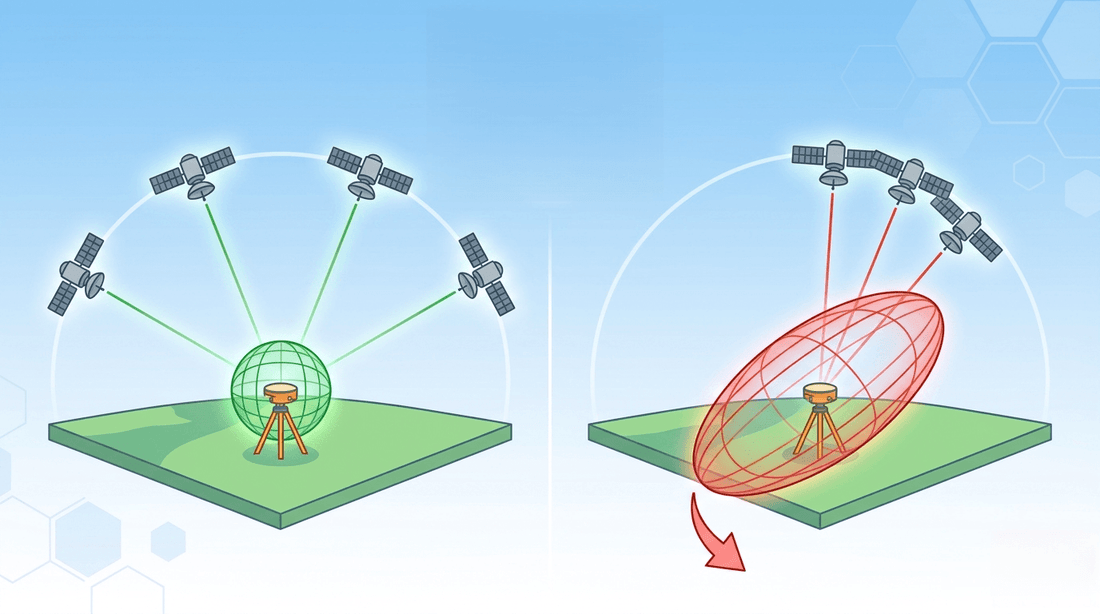

Why Satellite Geometry Matters
GNSS receivers determine position by measuring distances to multiple satellites simultaneously.
If satellites are evenly distributed across the sky, the geometric intersection is strong, resulting in lower positioning uncertainty.
However, if satellites are clustered in one region of the sky, even small ranging errors can lead to much larger position deviations.
This is why satellite geometry matters just as much as signal quality.
In practical applications:
- widely distributed satellites → lower DOP → better positioning reliability
- clustered satellites → higher DOP → amplified positioning errors
This effect becomes especially noticeable in urban canyons, forests, mountainous regions, and partially obstructed environments.
Common DOP Types
Different applications care about different dimensions of positioning accuracy. Here are the most common DOP types:
How to Interpret DOP Values
While exact thresholds depend on the application and environment, the following guidelines are widely used:
What Affects DOP?
Several factors influence the DOP value observed by a GNSS receiver.
Number of Satellites
More satellites generally improve positioning geometry, but satellite distribution matters more than satellite count alone.
For example, four evenly distributed satellites can sometimes produce better positioning geometry than ten satellites clustered in one area of the sky.
Multi-Constellation Support
Modern GNSS receivers often track:
- GPS
- BeiDou
- Galileo
- GLONASS
Using multiple constellations increases both satellite availability and geometric diversity, helping reduce DOP and improve positioning stability.
Elevation Angle
Low-elevation satellites are more vulnerable to:
- atmospheric delays
- multipath interference
- signal blockage
For this reason, many GNSS receivers apply elevation masks to exclude satellites near the horizon.
Using higher-quality satellites often improves positioning reliability even if the total satellite count decreases slightly.
Environmental Obstructions
Urban canyons, forests, mountains, and partially obstructed environments reduce visible sky coverage and force the receiver to rely on less favorable satellite geometry.
As visible satellites become concentrated in limited areas of the sky, DOP increases and positioning reliability decreases.
This is one reason why GNSS performance often deteriorates in dense urban environments even when signal strength appears acceptable.
Final Thoughts
DOP is one of the most important indicators of GNSS positioning reliability because it describes how satellite geometry amplifies measurement errors.
Even with strong signals and advanced receivers, poor geometry can still significantly reduce positioning accuracy.
Understanding DOP helps engineers, integrators, and GNSS users better evaluate real-world positioning performance, optimize antenna placement, and interpret positioning quality across different environments.
In high-precision GNSS, satellite geometry matters just as much as signal quality.
