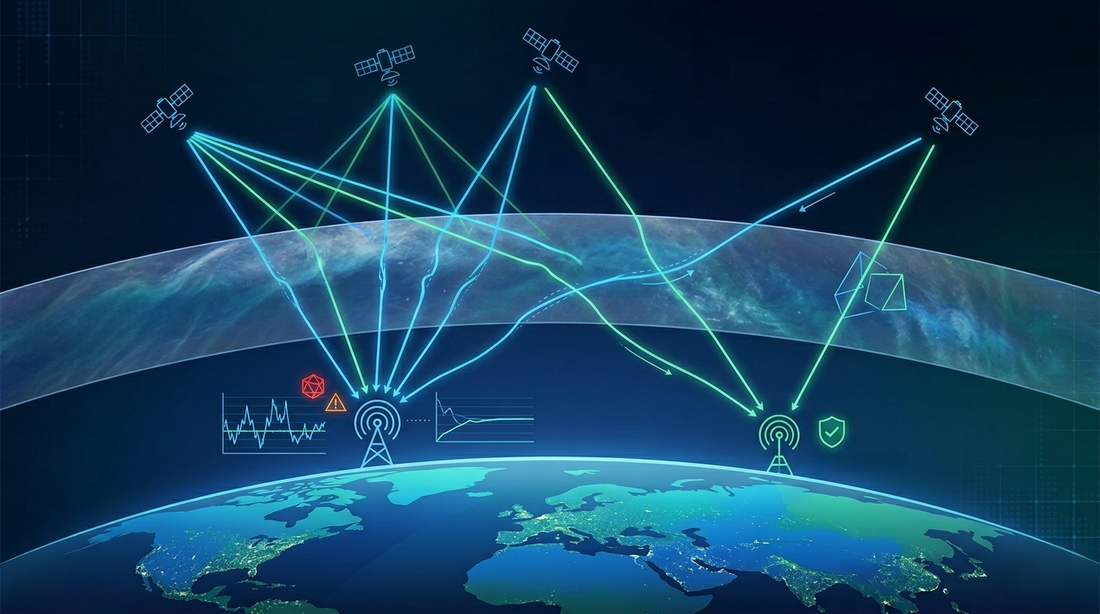

How Tropospheric Delay Affects High-Precision GNSS Positioning

When using GNSS for applications such as navigation, surveying, or RTK positioning, it is easy to assume that positioning accuracy mainly depends on the receiver, antenna, or the number of visible satellites. In reality, the atmosphere between the satellite and the receiver plays a critical role.

One of the most important—and often underestimated—error sources is the troposphere, the lowest layer of the Earth’s atmosphere.

Before a GNSS signal reaches the receiver, it passes through this layer, where variations in air pressure, temperature, and humidity slightly slow signal propagation. Although this delay may seem minor, even very small timing errors can translate into noticeable positioning errors.

For standard navigation, the impact may be manageable. But in high-precision applications such as RTK surveying, precision agriculture, robotics, and machine control, tropospheric delay directly affects:

• RTK convergence speed
• Fix stability
• Positioning reliability
• Final centimeter-level accuracy

What Is Tropospheric Delay?

The troposphere extends from the Earth’s surface to roughly 8–18 km in altitude. This is the atmospheric layer where clouds, humidity, rain, and most weather phenomena occur.

When GNSS signals travel through the troposphere, their propagation speed becomes slightly slower than in a vacuum. As a result, the receiver interprets the signal path as longer than it actually is, introducing a ranging bias into the positioning solution.

Under normal conditions, tropospheric delay in the zenith direction is typically about 2–2.5 meters. The effect becomes significantly larger for satellites at low elevation angles because the signal must travel through a much longer atmospheric path.

Tropospheric delay is generally divided into two components:

Dry Component

Caused primarily by dry atmospheric gases. This component is relatively stable and can be modeled accurately.

Wet Component

Caused by atmospheric water vapor. Unlike the dry component, water vapor changes rapidly across time and location, making it much harder to predict.

This wet component is one of the main residual atmospheric error sources in high-precision GNSS positioning.

How Tropospheric Delay Affects Positioning Accuracy

In many GNSS applications, tropospheric delay remains one of the largest residual error sources after standard corrections are applied.

For standalone positioning, the effect may contribute only a small part of the total positioning error. However, in RTK and geodetic surveying, even a few centimeters of residual atmospheric error can significantly affect system performance.

Typical impacts include:

• Slower RTK ambiguity resolution
• Longer convergence time
• Reduced RTK FIX rates
• Position instability or drift
• Occasional jumps in positioning results

The effect becomes more pronounced when:

• Satellites are at low elevation angles
• Humidity is high
• Weather conditions change rapidly
• RTK baselines become longer

As the distance between the base station and rover increases, atmospheric conditions become less correlated, reducing the effectiveness of atmospheric error cancellation.

This explains why GNSS performance can vary even when the hardware and satellite geometry remain unchanged.

How GNSS Systems Mitigate Tropospheric Delay

1. Atmospheric Correction Models

Most GNSS receivers apply built-in tropospheric correction models such as the Saastamoinen model.

These models estimate delay using standard atmospheric assumptions and can effectively reduce much of the dry component.

However, because the wet component changes rapidly and unpredictably, model-based correction alone is insufficient for centimeter-level positioning.

2. RTK and Differential GNSS

High-precision GNSS systems rely heavily on RTK and differential correction techniques.

In RTK positioning, the base station and rover simultaneously observe the same satellites. Because the two receivers are relatively close together, they experience similar atmospheric conditions.

By differencing observations between the receivers, many common errors—including a large portion of tropospheric delay—can be significantly reduced.

3. Double-Differenced RTK Models

One of the most effective approaches is the double-differenced RTK model.

Double differencing simultaneously removes:

• Receiver clock errors
• Satellite clock errors
• Large portions of atmospheric errors

This significantly improves ambiguity resolution performance and positioning stability.

The technique is particularly effective for short- to medium-baseline RTK applications where atmospheric conditions at the base and rover remain highly correlated.

At Qtalis, GNSS modules integrate advanced double-differenced RTK algorithms to minimize atmospheric error influence, improving RTK fix stability and delivering reliable high-precision positioning in real-world environments.

Conclusion

Tropospheric delay is one of the most important atmospheric error sources in GNSS positioning.

Although the signal slowdown occurs only during the final portion of signal propagation through the atmosphere, the resulting ranging error can significantly affect positioning accuracy—especially in RTK and other high-precision applications.

The dry component can be modeled effectively, but the wet component remains difficult to predict because of rapidly changing atmospheric water vapor conditions.

Even in modern multi-frequency GNSS systems, tropospheric delay continues to be a major challenge for centimeter-level positioning.

Fortunately, advanced atmospheric models, RTK correction techniques, and double-differenced positioning algorithms can greatly reduce its impact.

As GNSS applications increasingly demand stable centimeter-level positioning in real-world environments, understanding tropospheric delay is becoming more important than ever—not only for GNSS engineers, but for anyone building reliable high-precision positioning systems.
