How Multi-Frequency GNSS Eliminates Ionospheric Delay

Among all natural error sources in GNSS positioning, ionospheric delay is one of the largest and most difficult to predict. For single-frequency GNSS receivers, ionospheric errors can easily introduce positioning offsets ranging from several meters to tens of meters—especially during periods of intense solar activity or in low-latitude regions.

For high-precision applications such as RTK surveying, autonomous systems, robotics, and precision agriculture, understanding and mitigating ionospheric delay is essential for achieving centimeter-level positioning accuracy.

So how does modern multi-frequency GNSS reduce these errors so effectively?

What Is the Ionosphere?

The ionosphere is a region of the Earth’s atmosphere located roughly between 60 km and 1,000 km above the surface. Under solar ultraviolet radiation and X-rays, gas molecules become ionized, creating large concentrations of free electrons and charged particles.

When GNSS signals pass through this region, they interact with these free electrons, altering signal propagation speed and introducing positioning errors.

Why the Ionosphere Affects GNSS Signals

Unlike a vacuum, the ionosphere behaves as a dispersive medium, meaning GNSS signals at different frequencies propagate differently through it.

This creates two important effects:

Group Delay

The ranging code signal propagates slightly slower than the speed of light, making measured pseudoranges appear longer.

Phase Advance

The carrier phase signal propagates slightly faster, making carrier-phase measurements appear shorter.

Although these effects occur in opposite directions, their magnitudes are nearly equivalent.

In practical positioning, this is one of the key reasons why carrier-phase RTK positioning can achieve significantly higher precision than standard code-based positioning.

The Core Characteristic: Frequency Dependency

The ionospheric delay experienced by a GNSS signal can be approximately expressed as:

Δd ≈ (40.3 / f²) * TEC

Where:

• Δd = ionospheric delay
• TEC = Total Electron Content along the signal path
• f = signal frequency

This equation clearly shows that ionospheric delay decreases rapidly as signal frequency increases.

In other words: Lower-frequency GNSS signals experience significantly larger ionospheric delays.

For example, the GPS L2 signal experiences noticeably greater ionospheric delay than the L1 signal.

This frequency dependency forms the physical foundation of multi-frequency ionospheric mitigation.

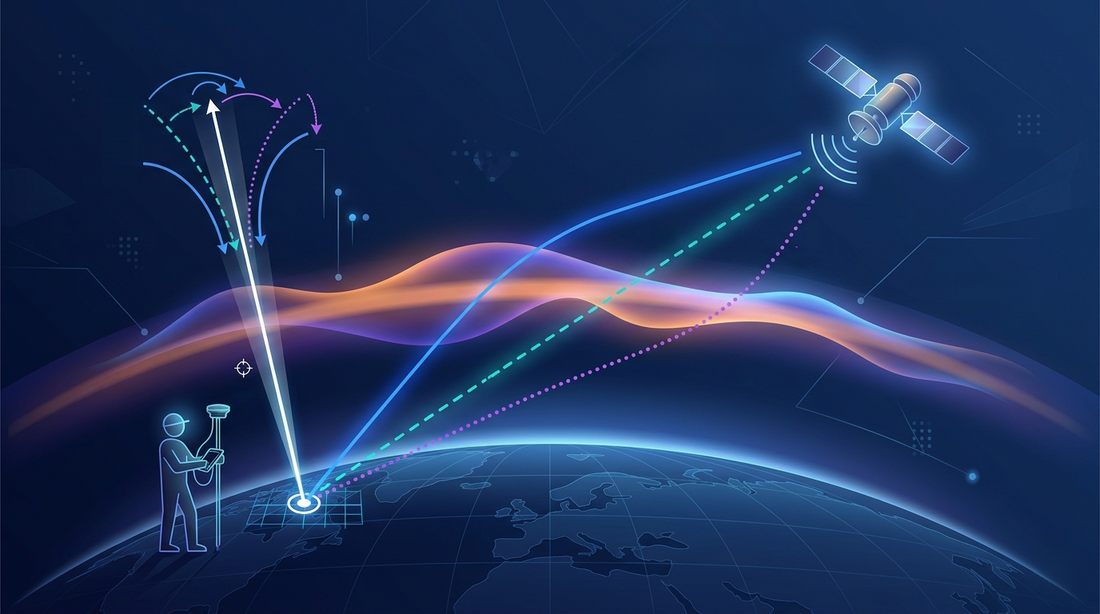

How Multi-Frequency GNSS Eliminates Ionospheric Delay

Single-frequency receivers cannot directly separate ionospheric delay from the true positioning solution. Instead, they rely on simplified atmospheric correction models such as Klobuchar or BDGIM.

Multi-frequency GNSS receivers use a fundamentally different approach.

By observing multiple frequencies simultaneously, the receiver can mathematically estimate and eliminate most ionospheric delay in real time.

This process is commonly known as the Ionosphere-Free (IF) Combination.

In simplified terms:

• Different frequencies experience different ionospheric delays
• The receiver compares delays across frequencies
• The shared geometric distance remains constant
• The ionospheric component can therefore be isolated and removed

As a result, dual-frequency and multi-frequency GNSS systems can eliminate over 99% of first-order ionospheric errors without relying heavily on external atmospheric models.

This is one of the primary reasons why dual-frequency RTK receivers dramatically outperform single-frequency devices in challenging environments.

Why Triple-Frequency GNSS Is Becoming the Industry Standard

Modern GPS, BeiDou, and Galileo systems increasingly support triple-frequency signals such as L1/L2/L5 or B1/B2/B3.

This is not simply redundancy—it provides major technical advantages.

1. Better Residual Error Suppression

While dual-frequency combinations remove most first-order ionospheric delay, small higher-order residual errors still remain.

Triple-frequency combinations further suppress these residual atmospheric effects, improving positioning stability and accuracy.

2. Faster Ambiguity Resolution

Triple-frequency carrier-phase combinations can create extremely long effective wavelengths, often called Extra-Wide Lane combinations.

These significantly improve:

• Cycle slip detection
• Ambiguity resolution speed
• RTK initialization reliability

This is especially important for high-dynamic applications such as robotics and autonomous driving.

3. Improved Ionospheric Monitoring

During periods of strong solar activity, the ionosphere can fluctuate rapidly, producing ionospheric scintillation and unstable positioning conditions.

Multi-frequency observations allow receivers to monitor these disturbances in real time, improving robustness under challenging atmospheric conditions.

Single-Frequency vs Multi-Frequency GNSS

Error Processing Strategy	Correction Accuracy	Dependency Conditions	Typical Applications
Single-frequency Model (Klobuchar)	Low (50%–60%)	Priori parameters provided by broadcast ephemeris	Smartphone navigation, consumer electronics
Single-frequency Model (BDGIM)	Medium	BeiDou-specific Global Ionospheric Model	Asia-Pacific and global single-frequency high-precision enhancement
Multi-frequency Combination (IF Combination)	Extremely High (99%+)	Requires dual-frequency or multi-frequency hardware support	Surveying, autonomous driving, precision agriculture

Conclusion

The ionosphere is one of the largest natural error sources in GNSS positioning. Its effects are dynamic, frequency-dependent, and impossible to ignore in high-precision applications.

The significance of multi-frequency GNSS lies in its ability to transform atmospheric interference from an unpredictable environmental error into a measurable and removable physical effect.

As multi-frequency GNSS chipsets become more affordable and widely available, real-time ionospheric mitigation is rapidly becoming a standard capability rather than a premium feature.

This transition is accelerating the adoption of centimeter-level positioning across surveying, robotics, autonomous systems, and precision agriculture.
