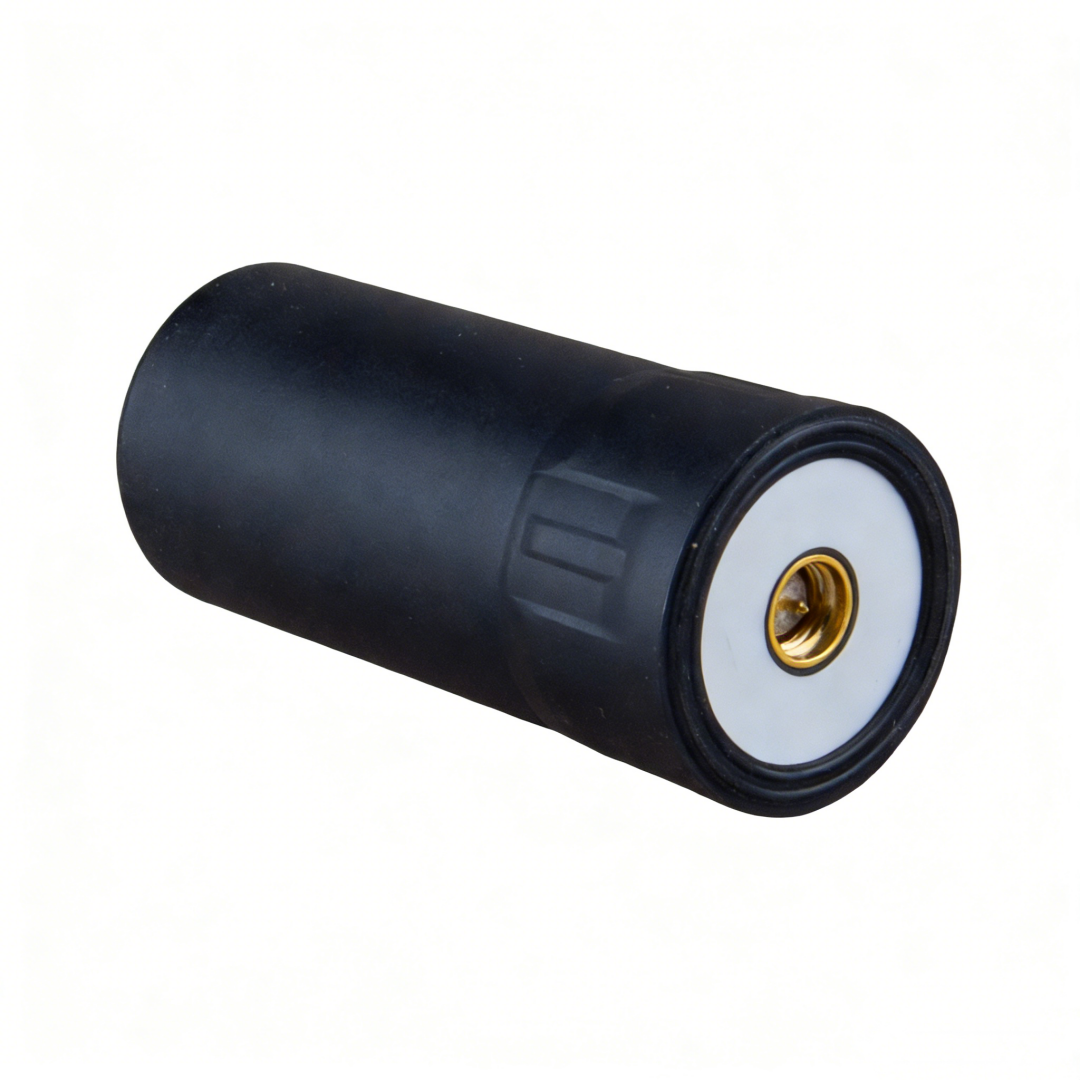

• Qtalis AT160 Helix Antenna Slide View

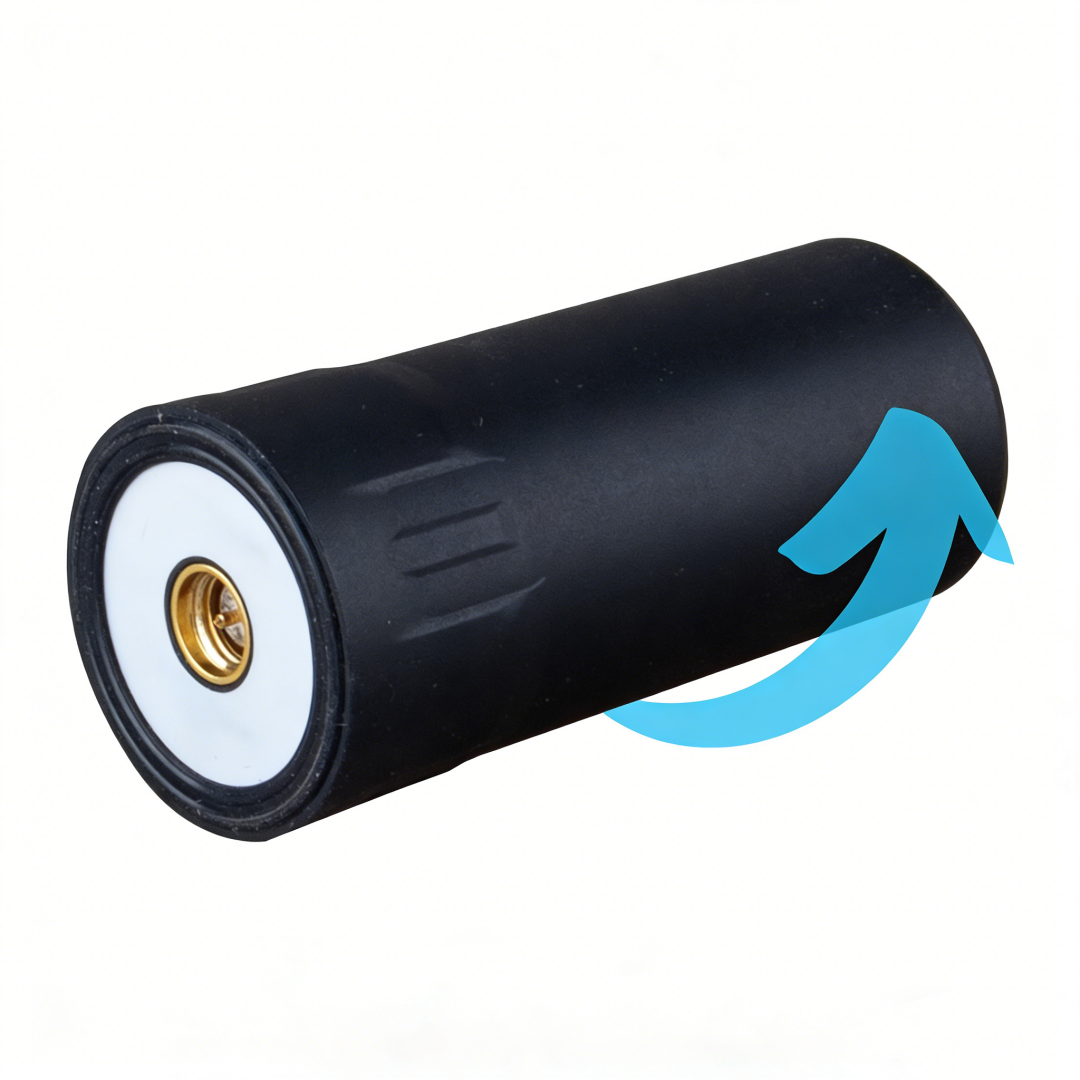

  • Qtalis AT160 Helix Antenna Enhanced Accuracy and Reliability

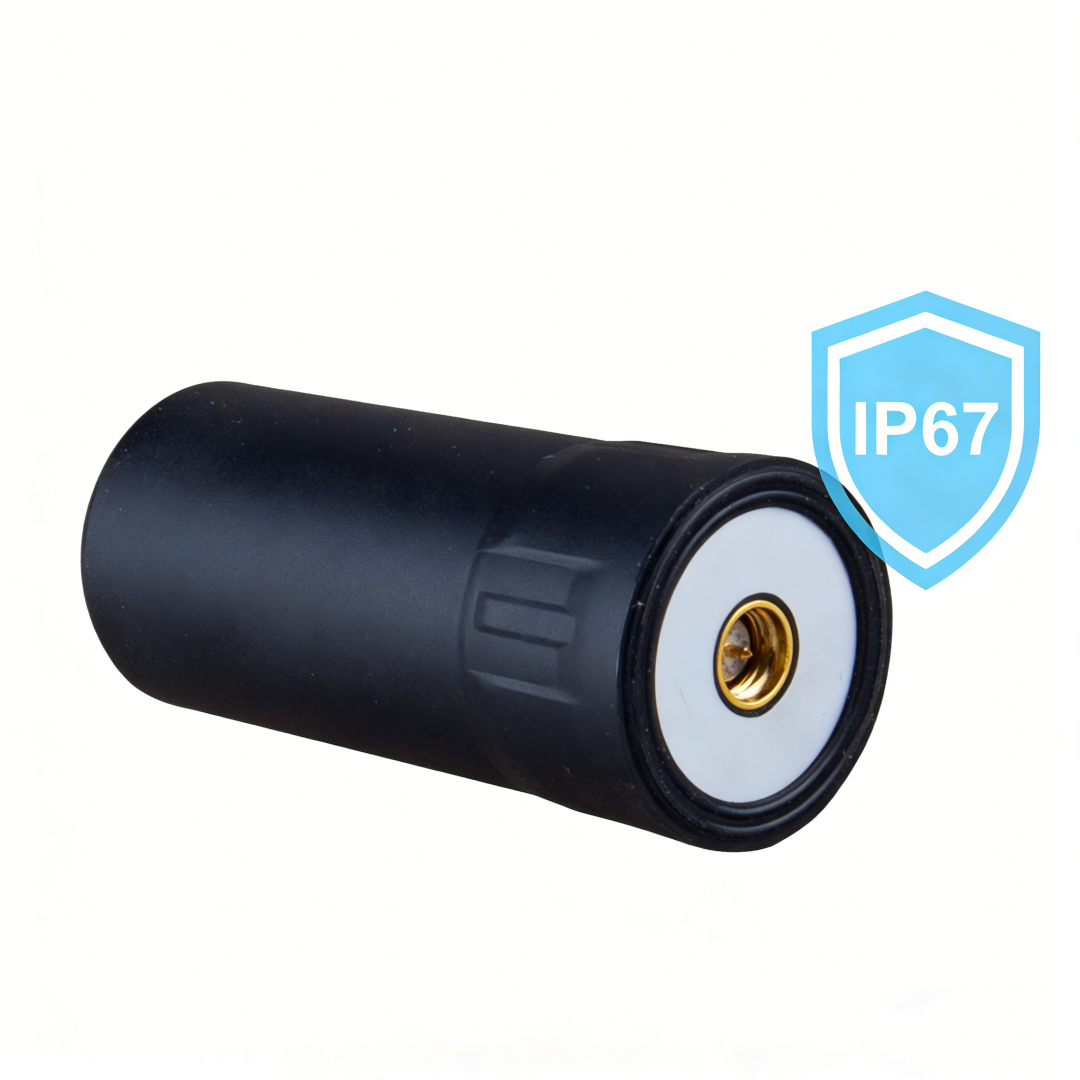

  • Qtalis AT160 Helix Antenna IP67
1 3

Qtalis

AT160 Helix Antenna

AT160 Helix Antenna

$99.00 USD
$99.00 USD
Sale Sold out
Shipping calculated at checkout.
ⓘ

Volume Pricing & OEM Support

Bulk pricing, OEM customization, and system integration.

Request a Quote
  • Global Shipping
  • 1-Year Warranty
  • Engineering Support

AT160 Helix GNSS Antenna is a compact, high-performance full-constellation, triple-frequency antenna supporting GPS, GLONASS, BeiDou, Galileo, and SBAS. With high gain, low noise, and excellent phase center stability, it delivers accurate and reliable positioning for UAVs, UGVs, robotics, GIS, and RTK applications. Measuring Φ27.5 × 58 mm and weighing under 30g, AT160 is ideal for space and weight-constrained platforms, while its IP67-rated waterproof and dustproof design ensures dependable operation in harsh outdoor environments.

Key Features

  • Support GPS L1/L2/L5, GLONASS G1/G2, BDS B1/B2/B3, Galileo E1/E5a/E5b, SBAS and L-Band
  • Low noise amplifier and high gain
  • Sub-millimeter level phase center error with outstanding stability and repeatability
  • Strong capability of tracking satellites at low elevation angles
  • Superior waterproof and dustproof design



Helpful Documentation

📄
Datasheet
View full details
GPSL1, L2, L5
GLONASSG1, G2
BeidouB1, B2, B3
Galileo E1, E5a, E5b
SBAS
Nominal Impedance50Ω
PolarizationRHCP
Axial Ratio (90°)≤ 3dB
LNA Gain33±2dB
Noise Figure≤ 1.8dB
VSWR Output≤ 1.8
Operation Voltage3 - 12 VDC
Operation Current≤ 42mA
Gain at Zenith3dBi
DimensionΦ27.5×58 mm
ConnectorSMA male connector
Weight≤ 30g
Operating Temperature-40°C to +70°C
Storage Temperature-55°C to +85°C
Humidity95% No-condensing
Waterproof and DustproofIP67
