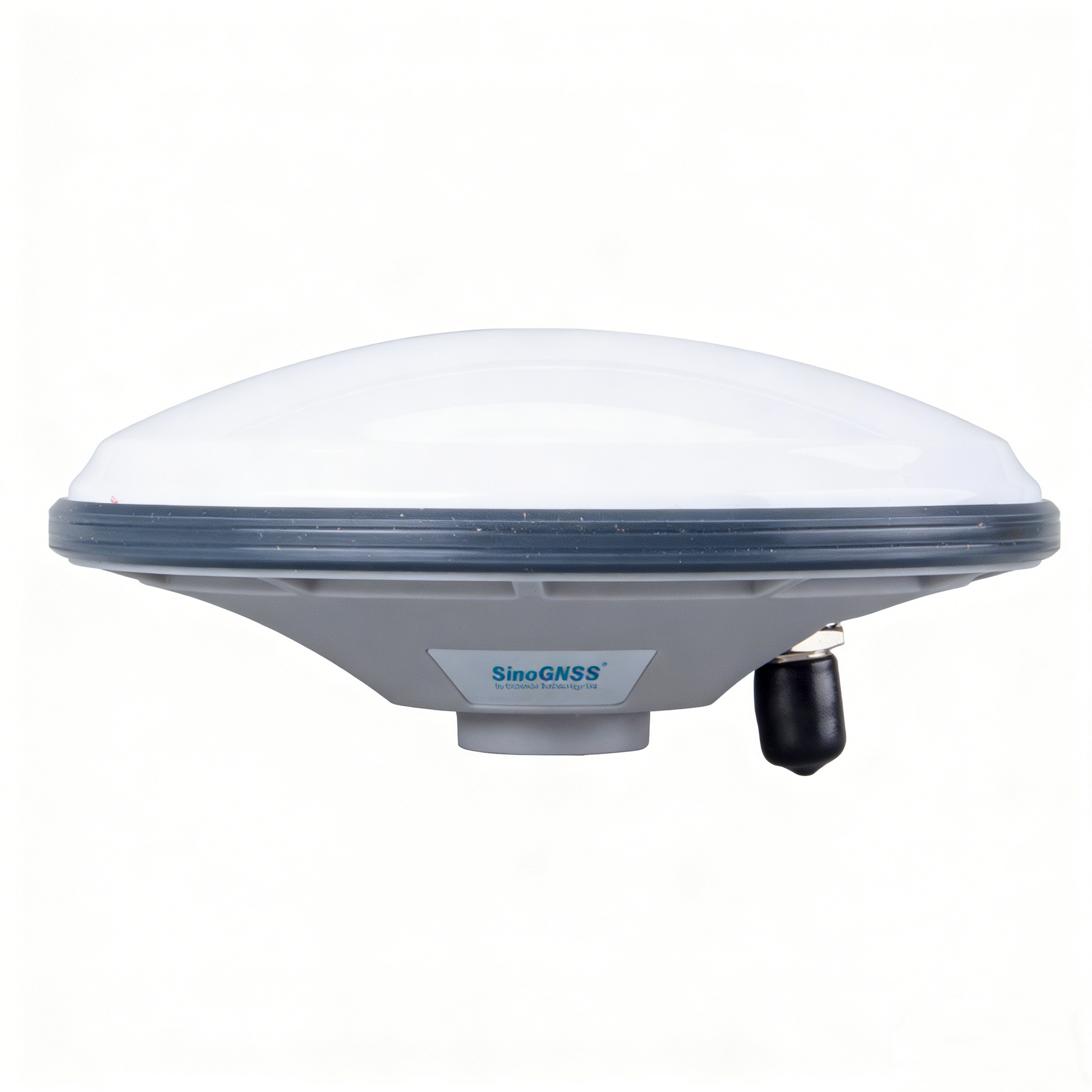

AT360 Geodetic Antenna

AT360 Geodetic Antenna

Regular price $120.00 USD
Regular price $150.00 USD Sale price $120.00 USD (20% off)
Sale Sold out
Shipping calculated at checkout.
Quantity
ⓘ

Volume Pricing & OEM Support

Bulk pricing, OEM customization, and system integration.

Request a Quote
  • Global Shipping
  • 1-Year Warranty
  • Engineering Support

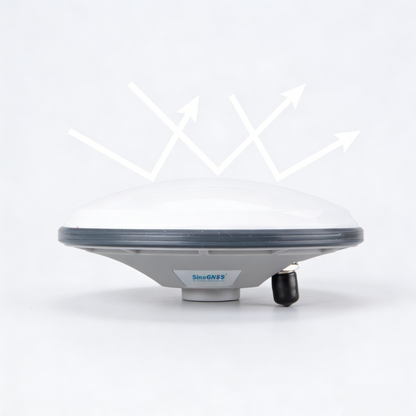

The AT360 GNSS Antenna is a high-performance, multi-frequency antenna designed for precise and reliable positioning. It supports GPS, GLONASS, BDS, Galileo, SBAS, and L-Band signals. With high gain, a low-noise amplifier, and excellent sensitivity, AT360 delivers stable signal tracking for land surveying, precision agriculture, construction, and deformation monitoring systems.

Key Features

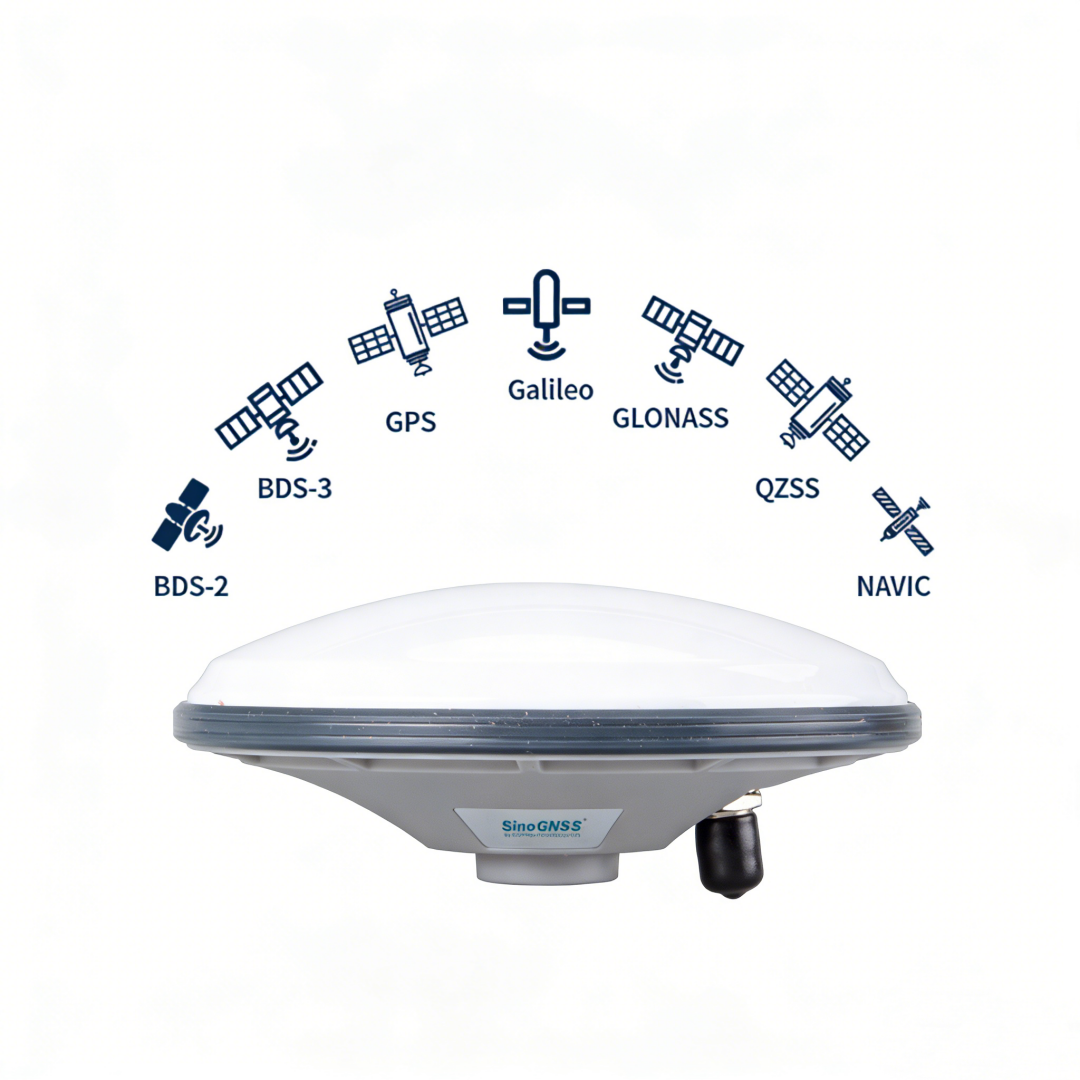

  • Support GPS, GlONASS, BDS, Galileo, QZSS, IRNSS, SBAS and L-Band
  • Low noise amplifier and high gain
  • Millimeter-level phase center error with outstanding stability and repeatability
  • Strong capability of tracking satellites at low elevation angles

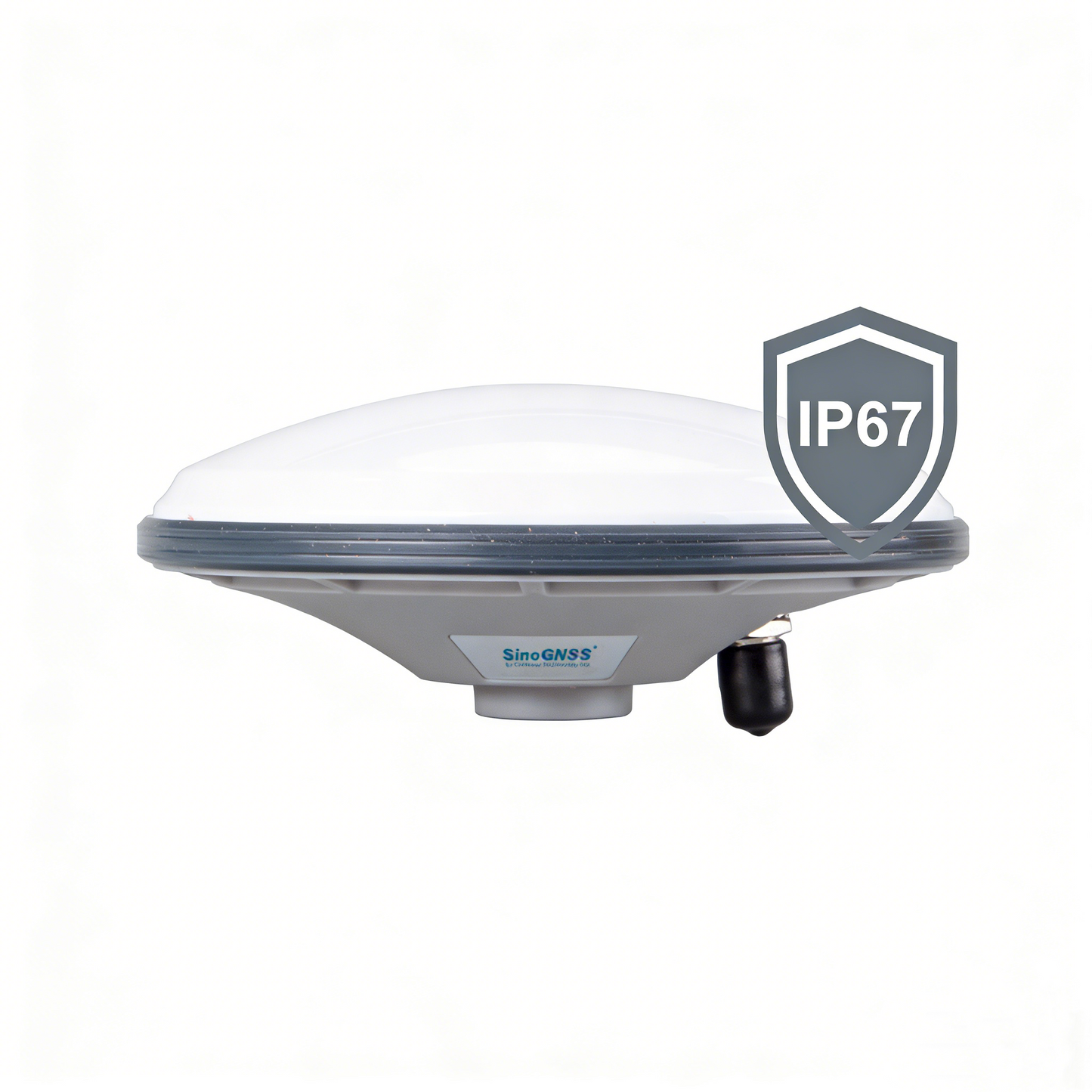

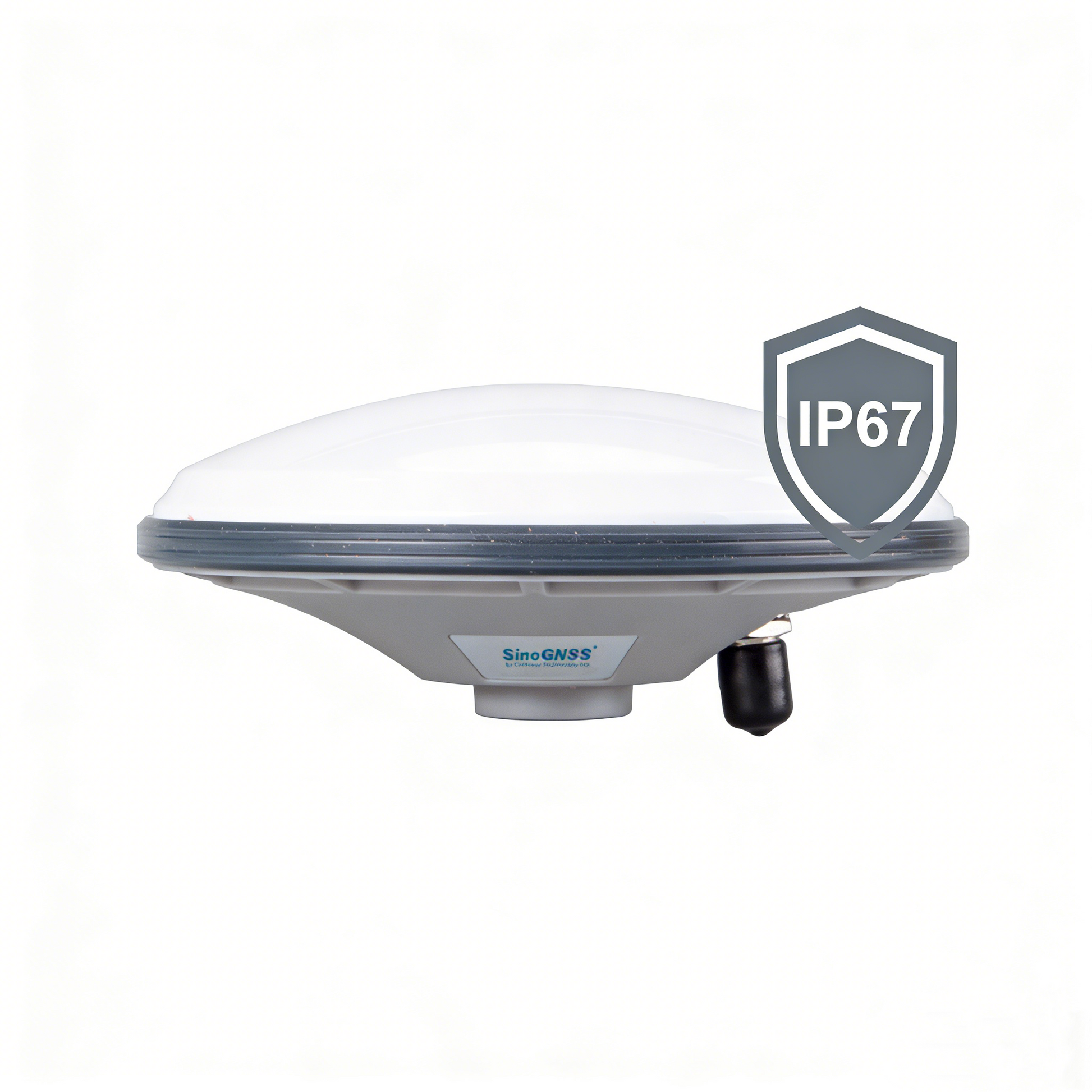

  • Superior waterproof and dustproof design

Helpful Documentation

View full details
  • 5 stars: 2 (100%)
  • 4 stars: 0 (0%)
  • 3 stars: 0 (0%)
  • 2 stars: 0 (0%)
  • 1 star: 0 (0%)
B
Brandon Lewis
Excellent Antenna

Easy to mount, great signal reception, and no issues after several weeks of field use. Very satisfied with the purchase.

R
Rohit Verma
Stable performance and fast delivery

Using the AT360 for surveying, signal tracking is stable even in tougher conditions. Build quality is solid, and shipping was faster than expected. Good value overall.

 Technical Specifications

GPSL1, L2, L5
GLONASSG1, G2, G3
BeidouB1I, B2I, B3I, B1C, B2a, B2b
Galileo E1, E5a, E5b, E6c
QZSSL1, L2, L5, L6
IRNSSL5
SBASL1, L5
L-band
Nominal Impedance50Ω
PolarizationRHCP
Axial Ratio (90°)≤ 3dB
LNA Gain40dB ± 2dB
Noise Figure≤ 2dB
VSWR Output≤ 2.0
Operation Voltage3.3 - 15 VDC
Operation Current≤ 45mA
Passband Ripple± 2dB
Gain at Zenith5.5dBi
Phase Center Offset± 2mm
DimensionΦ147×67.7 mm
ConnectorTNC Female connector
Weight≤ 500g
Operating Temperature-40°C to +85°C
Storage Temperature-55°C to +85°C
Humidity95% No-condensing
Waterproof and DustproofIP67
