| Signal tracking | Channels: 965 GPS: L1 C/A, L2C, L2P, L5 BeiDou: B1, B2, B3 BeiDou Global Signal: B1C, B2a, B2b GLONASS: L1 C/A, L1P, L2C/A, L2P Galileo: E1, E5a, E5b, E6, E5 AltBOC QZSS: L1, L2C, L5 IRNSS: L5 SBAS: WAAS, EGNOS, MSAS, GAGAN,SDCM |
| Cold Start | < 50s |
| Warm Start | <30 s |
| Hot Start | <15 s |
| Signal reacquisition | <1.5 s |
| RTK Initialization time | <10 s |
| Initialization Reliability | 99.9% |
| Post Processing | 2.5 mm + 1 ppm Horizontal 5 mm + 1 ppm Vertical |
| Single Baseline RTK | 8 mm + 1 ppm Horizontal 15 mm + 1 ppm Vertical |
| DGPS | <0.4m RMS |
| SBAS | 1.5m 3D RMS |
| Standalone | 1m 3D RMS |
| Size (L x W x H) | 137 mm × 72 mm × 50.4 mm |
| Weight | <0.35 kg (with 1 battery inside) |
| Power consumption | 1.6 W |
| Operating temperature | -20 °C to +60 °C |
| Storage temperature | -30 °C to +70 °C |
| Waterproof | IP67 |
| Shock and vibration | Survive a 1.5m nature drop onto concrete |
| Battery capacity | 3400 mAh |
| Working time | Over 15 h continuous work |
| Charging time | 2.5 h |
| Bluetooth® 4.0 | Compatible with Android™ and Windows™ mobile OS |
| Support Ntrip protocol (based on software) | |

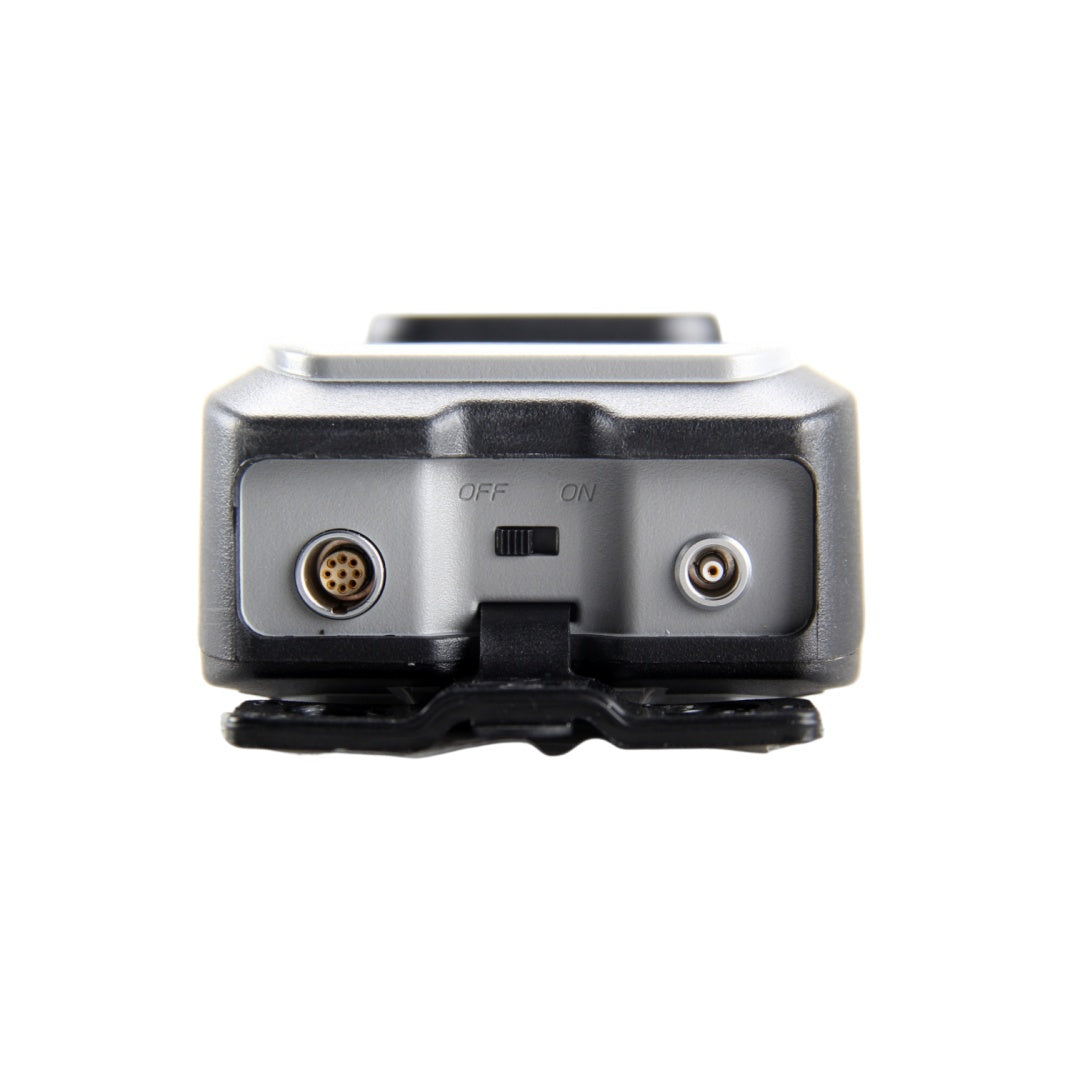

| 1 serial port (9 pin Fischer), 1 Fischer connector | |
| 3 LEDs (indicating Power, Satellite Tracking and Bluetooth) |
