Qtalis

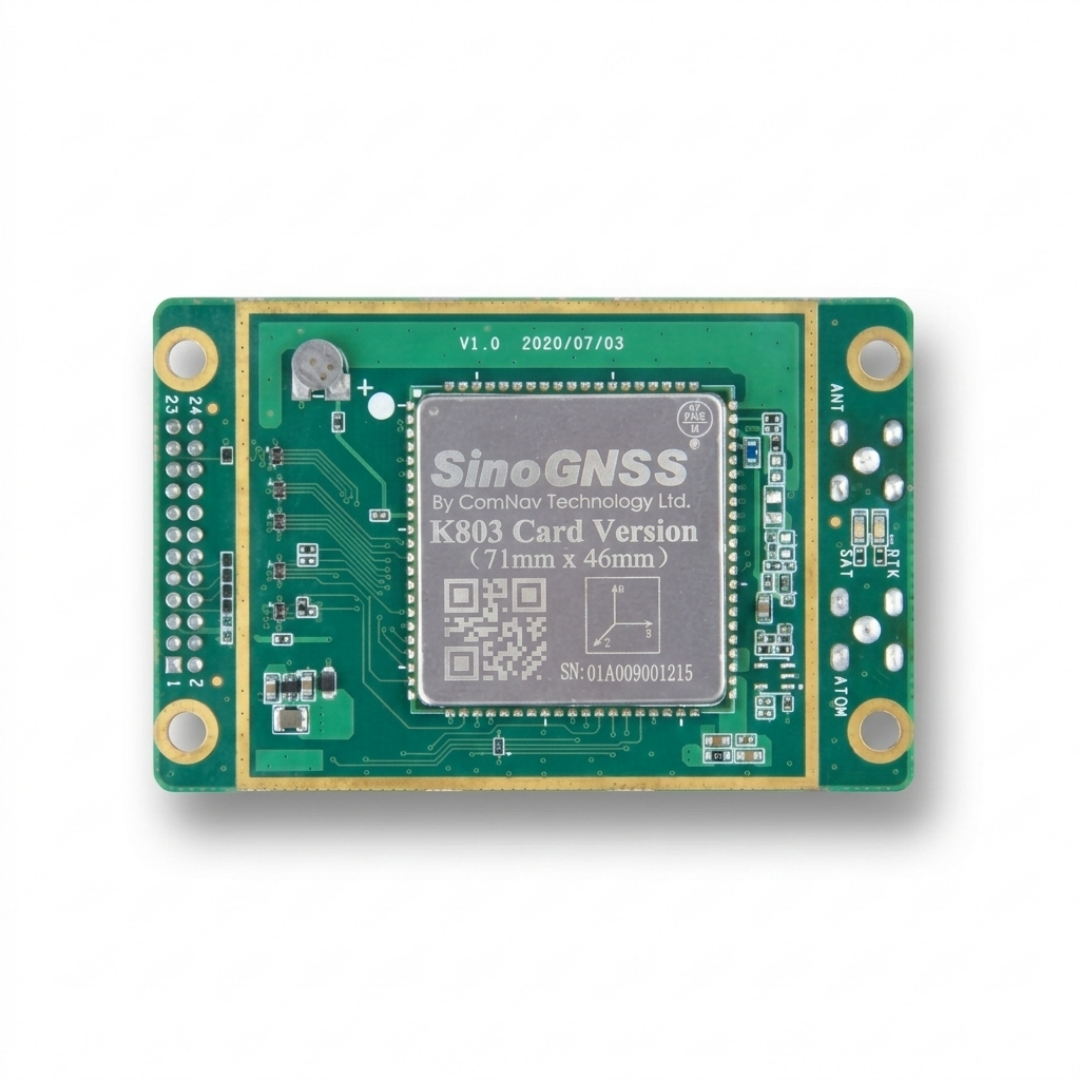

K803 GNSS OEM Board

K803 GNSS OEM Board

$199.00 USD
$249.00 USD $199.00 USD (20% off)
Sale Sold out
Shipping calculated at checkout.
ⓘ

Volume Pricing & OEM Support

Bulk pricing, OEM customization, and system integration.

Request a Quote
  • Global Shipping
  • 1-Year Warranty
  • Engineering Support

The K803 GNSS OEM Board is a card-version high-precision positioning board built on the K803 GNSS module, delivering full-constellation, triple-frequency GNSS performance with an integrated high-precision IMU. Designed for seamless system integration, the board provides reliable centimeter-level positioning and stable GNSS/INS navigation in demanding environments.

With its ready-to-integrate board-level design, the K803 OEM Board simplifies development for UAVs, robotics, marine navigation, land surveying, deformation monitoring, machine control, and other high-precision positioning applications.

Key Features

  • Support GPS L1/L2/L5, BeiDou B1/B2/B3, GLONASS L1/L2, Galileo E1/E5a/E5b, QZSS, IRNSS, SBAS, BeiDou Global Signal B1C, B2a, B2b
  • Support L-Band and PPP
  • Support GNSS+INS navigation
  • Surface-mounted design and small size to integrate
  • High-performance floating-point arithmetic
  • Industry-leading low power consumption
  • Internal adaptive anti-interference algorithm

Certifications
CE / FCC Certificate

View full details

Application

Designed for high-precision positioning in demanding environments.

Satellites trackingGPS: L1C/A, L2C, L2P, L5, L1C
BeiDou BDS-2: B1I, B2I, B3I
BDS-3: B1I, B3I, B1C, B2a, B2b
GLONASS: G1, G2, G3
Galileo: E1, E5a, E5b, E6c, E5 AltBOC
QZSS: L1C/A, L2C, L5, L1C
SBAS: L1C/A, L5
NavIC: L5
L-Band
Post Processing2.5 mm + 1 ppm Horizontal
5 mm + 1 ppm Vertical
Single Baseline RTK8 mm + 1 ppm Horizontal
15 mm + 1 ppm Vertical
DGPS<0.4 m RMS
SBAS1 m 3D RMS
Standalone1.5m 3D RMS
Cold start<20 s
Hot start<10 s
RTK Initialization time<10 s
Signal reacquisition<1 s
Initialization reliability>99.9%
Velocity accuracy≤ 0.02 m/s
Acceleration4 g
Overload15 g
Time accuracy20 ns
Size (L x W x H)73.5 mm × 100 mm × 22 mm
Weight82.5g
Hardware interface1.6 pin,2.5mm
Power consumption1.5 W
Input voltage+5-12V DC
Operating temperature-40 °C to + 85 °C
Storage temperature-55 °C to + 95 °C
LNA Power External+3.3V ~ +5V ± 5%VDC @ 0-100mA
LNA Gain20 ~ 40dB (suggested)
Impedance MatchingWiring 50 Ω impedance matching
LVTTL ports1XRS232, 3XLVCMOS
BT1
Event Markers input2
Pulse Per Second (PPS) output1
GPIO2
Correction data I/ORTCM 2.X, 3.X, CMR(GPS only), CMR+(GPS only)
Position data output- ASCII: NMEA-0183 GGA, GSA, GSV, RMC, HDT, VHD, ZDA, VTG, GST, GLL; PTNL, PJK; PTNL, AVR; PTNL, GGK
- ComNav Binary
- BINEX Data: 0x00, 0x01-01, 0x01-02, 0x01-05, 0x7d-00, 0x7e-00, 0x7f-05
- Position data output rate: 1 Hz, 2 Hz, 5 Hz, 10 Hz, 20Hz
