Qtalis

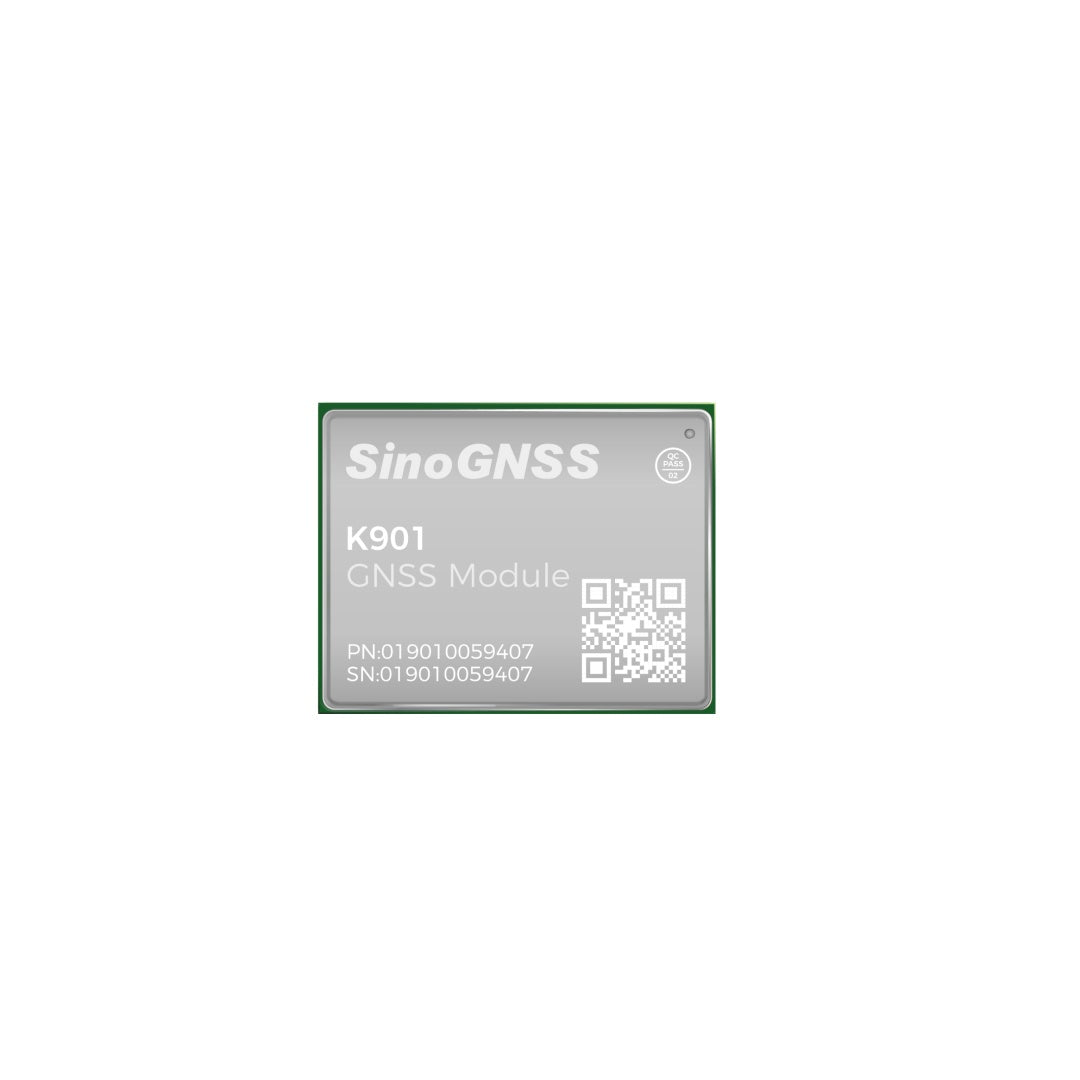

K901 GNSS Module

High Precision RTK Positioning GNSS Module

K901 GNSS Module

Regular price $119.00 USD
Regular price Sale price $119.00 USD
Sale Sold out
Shipping calculated at checkout.
Quantity
ⓘ

Volume Pricing & OEM Support

Bulk pricing, OEM customization, and system integration.

Request a Quote
  • Global Shipping
  • 1-Year Warranty
  • Engineering Support

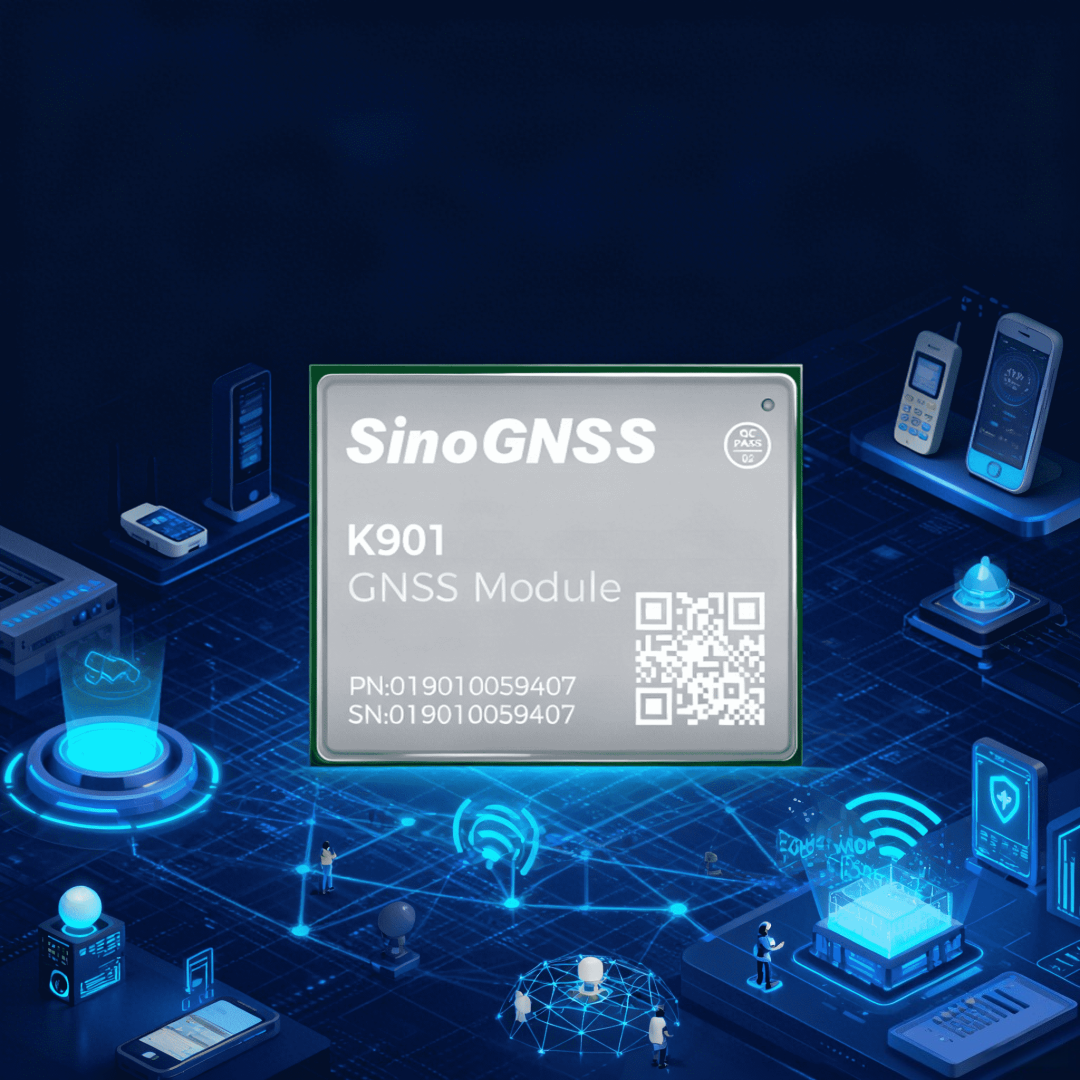

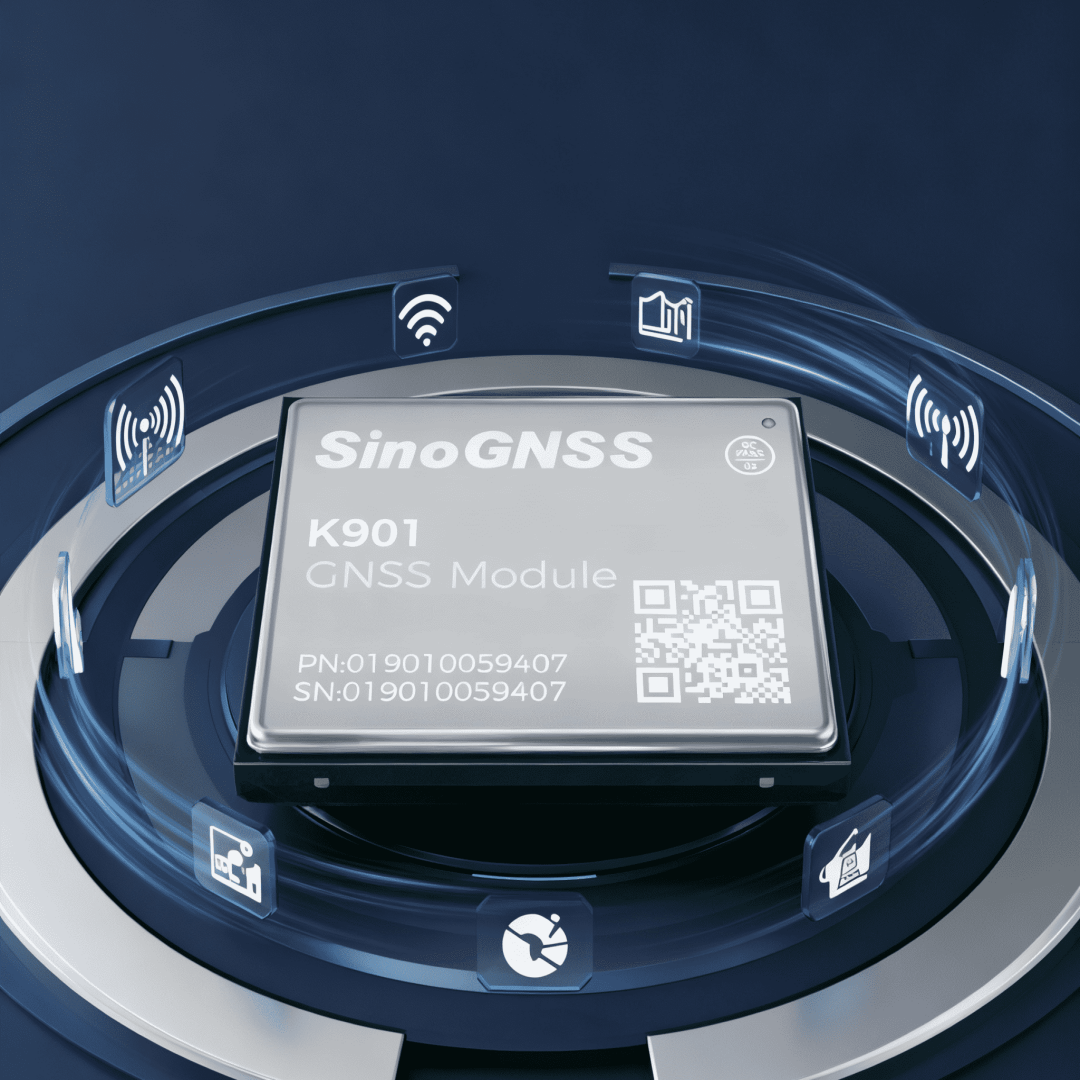

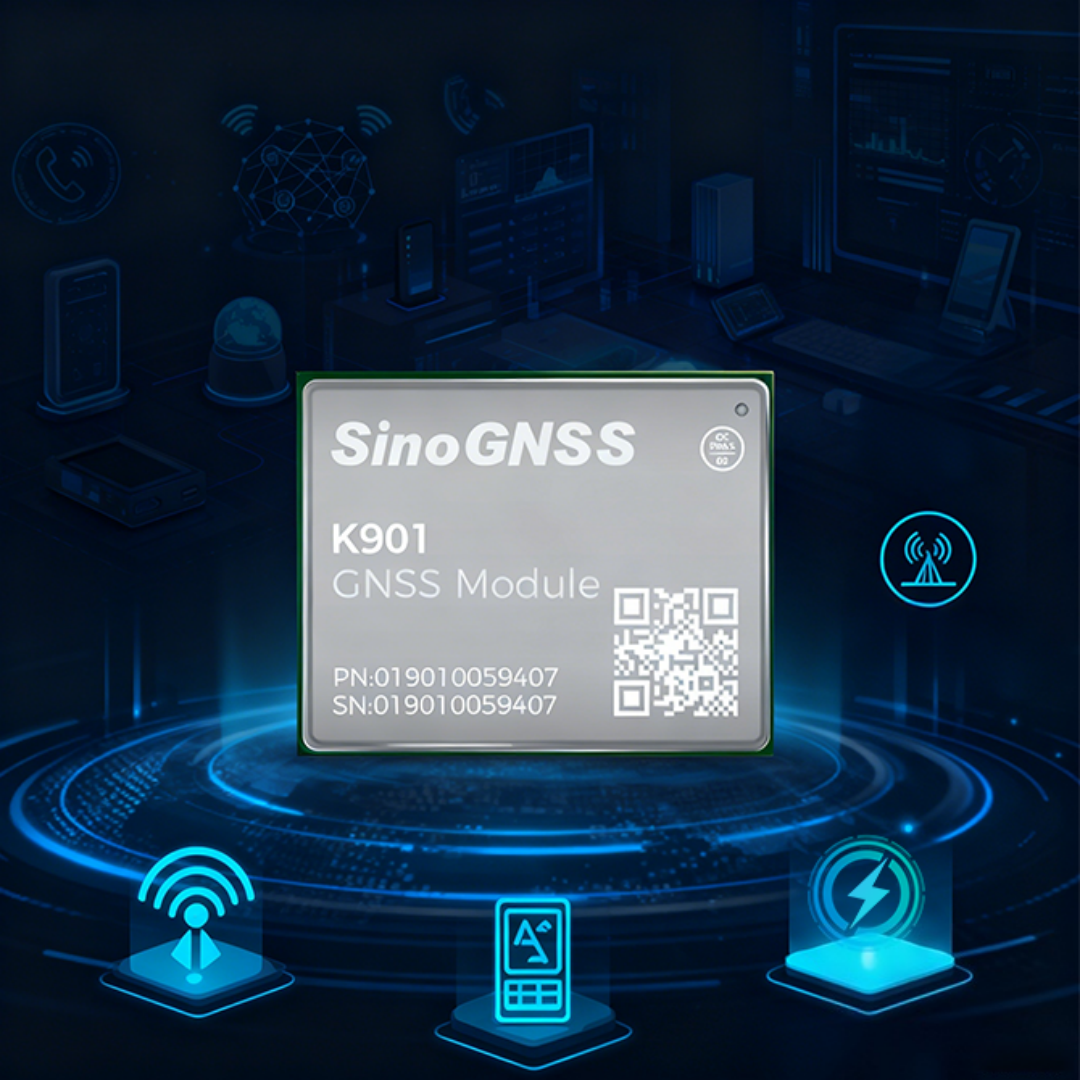

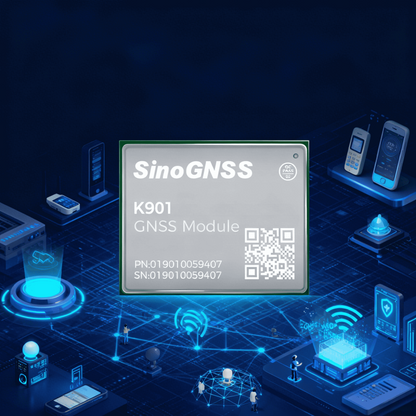

The K901 GNSS Module integrates the advanced QC7820 SoC to deliver high-precision, full-constellation GNSS positioning in a compact and power-efficient design. Featuring ultra-low power consumption, multi anti-interference technologies, and wideband reception capabilities, the K901 ensures stable and reliable performance even in challenging electromagnetic environments. With its space-saving SMT package and pin compatibility with industry-standard GNSS modules, the K901 enables easy integration and faster development for applications such as IoT devices, UAVs, and other size- and power-sensitive systems.

Key Features

  • Support GPS, BDS-2, BDS-3, GLONASS, GALILEO,
    NAVIC, QZSS and SBAS
  • RF&BB Integrated High-Precision GNSS SoC Chip
  • Brand New Dual Core CPU Structure
  • Small Size & Low Power Consumption
  • Support PPP-B2b, PPP-HAS Service

Helpful Documentation

View full details
  • 5 stars: 0 (0%)
  • 4 stars: 1 (100%)
  • 3 stars: 0 (0%)
  • 2 stars: 0 (0%)
  • 1 star: 0 (0%)
A
Ahmed Hassan
Compact and efficient module

Easy to integrate and very low power consumption. Performance is stable in our IoT use case. Shipping was fast and overall good value.

Thank you for your feedback! We'll continue working to maintain fast delivery and strong product quality.

 Technical Specifications

Signal TrackingGPS: L1C/A, L2P, L2C, L5, L1C
BDS: B1I, B3I, B1C, B2a, B2b
GLONASS: G1, G2, G3*
Galileo: E1, E5b, E5a, E5 AltBoC*, E6c*
QZSS: L1C/A, L2C, L5, L1C
SBAS: L1C/A
NAVIC: L5
Cold Start< 20 s (Adding Acceleration Capture Module)
Hot Start (with RTC)< 10s (Typical)
Signal Reacquisition< 1s
RTK Initialization time< 5s (D < 10km)
Initialization Reliability> 99.9 %
Velocity accuracy≤ 0.02 m/s
Time Accuracy20ns
PPP Convergence Time< 15 min
Post Processing2.5 mm + 1 ppm Horizontal
5 mm + 1 ppm Vertical
Single Baseline RTK8 mm + 1 ppm Horizontal
15 mm + 1 ppm Vertical
DGPS<0.4 m RMS
SBAS1 m 3D RMS
Standalone1.5 m Horizontal; 3 m Vertical
PPP0.1 m Horizontal; 0.2 m Vertical
Size (L x W x H)12.2 mm × 16 mm × 2.5 mm
Weight1.0 g
Hardware interfaceLGA 24 pin
Power consumption0.35 W
Input voltage+ 3.3 V ± 5% DC
Working temperature-40 °C to + 85 °C
Storage temperature-55 °C to + 125 °C
LNA Power External+3.3V ~ +5V ± 5%VDC @ 0-100mA
LNA Gain20 ~ 35 dB (Suggested)
Impedance Matching50 Ω
UART 3
PPS 1
EVENT1
I2C1
Correction data I/ORTCM 2.X, 3.X
Position data output- ASCII (NMEA-0183): GGA, GSA, GSV, RMC, HDT, VHD, ZDA, VTG, GST, GLL
- Binary: ComNav Binary
- Position Output Rate: 1 Hz, 2 Hz, 5 Hz, 10 Hz, 20 Hz*, 50 Hz*
