Application
| Signal Tracking | GPS:L1C/A, L2P, L2C, L5, L1C BDS-2: B1I, B2I, B3I BDS-3: B1I, B3I, B1C, B2a, B2b GLONASS: G1, G2, G3* Galileo: E1, E5b, E5a, E5 AltBoC*, E6c* QZSS: L1C/A, L2C, L5, L1C SBAS: L1C/A, L5 NAVIC*: L5 |
| Cold Start | < 20 s (Adding Acceleration Capture Module) |
| Hot Start (with RTC) | < 10s (Typical) |
| Signal Reacquisition | < 1s |
| Initialization Reliability | > 99.9 % |
| Velocity accuracy | ≤ 0.02 m/s |
| Time Accuracy | 5 ns |
| PPP Convergence Time | < <15 min¹ |
| Post Processing | 2.5 mm + 1 ppm Horizontal 5 mm + 1 ppm Vertical |
| DGPS | <0.4 m RMS |
| SBAS | 1 m 3D RMS |
| Standalone | 1.5 m Horizontal; 3 m Vertical |
| PPP | 0.1 m Horizontal; 0.2 m Vertical |

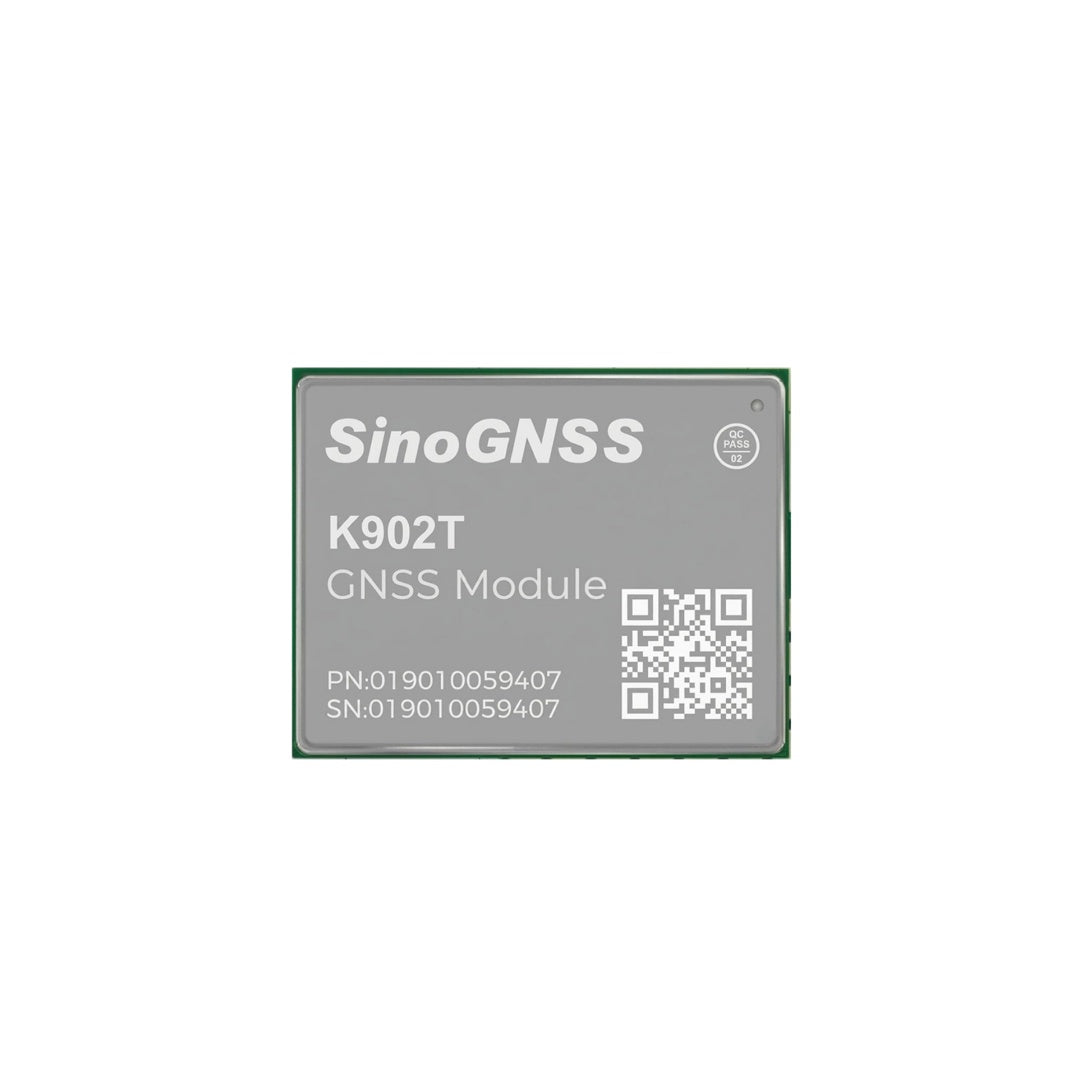

| Size (W x L x H) | 17 mm × 22 mm × 2.5 mm |
| Weight | 1.9 g |
| Hardware interface | LGA 54 pin |
| Power consumption | 0.4 W (Anti-interference off) |
| Input voltage | + 3.3 V ± 5% DC |
| Working temperature | -40 °C to + 85 °C |
| Storage temperature | -55 °C to + 125 °C |
| LNA Power(Exernal) | +3.3V ~ +5V ± 5%VDC @ 0-100mA |
| LNA Gain | 20 ~ 35 dB (Suggested) |
| Impedance Match | 50 Ω |
| UART | 2 |
| UART3 or CAN (optional) | 1 |
| PPS | 1 |
| EVENT | 1 |
| I2C | 1 |
| SPI | 1 |
| ETH | 1 |
| Correction data I/O | RTCM 2.X, 3.X |
| Position data output | - ASCII (NMEA-0183): GGA, GSA, GSV, RMC, HDT, VHD, ZDA, VTG, GST, GLL - Binary: ComNav Binary - Position Output Rate: 1 Hz, 2 Hz, 5 Hz, 10 Hz, 20 Hz*, 50 Hz* |
Note:
Items marked with *are only support by specific firmware.
¹ The laboratory test results may be affected by experimental environment and are provided for reference purposes.
Items marked with *are only support by specific firmware.
¹ The laboratory test results may be affected by experimental environment and are provided for reference purposes.
