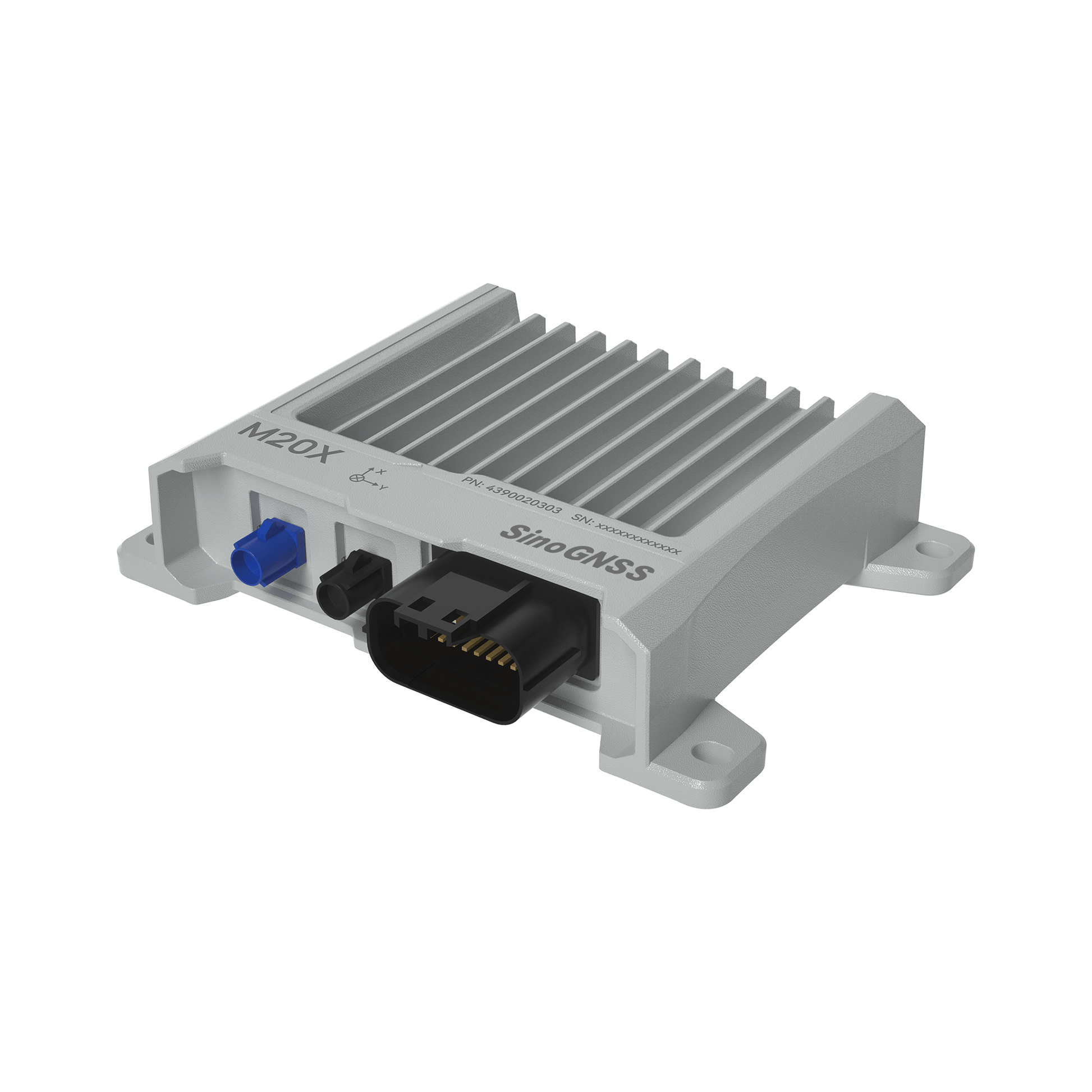

• Qtalis M20X GNSS INS Receiver
  • Qtalis M20X GNSS INS Receiver for Autonomous Driving
  • Qtalis M20X GNSS INS Receiver for Robobus
  • Qtalis M20X GNSS INS Receiver for Robotaxi
  • Qtalis M20X GNSS INS Receiver for Logistics Vehicles
1 5

Qtalis

M20 X GNSS/INS Receiver

M20 X GNSS/INS Receiver

$1,599.00 USD
$1,599.00 USD
Sale Sold out
Shipping calculated at checkout.

Designed to meet automotive-grade standards, the M20 X GNSS/INS Receiver integrates Qtalis’s high-precision SoC chip, ensuring top-tier performance with AEC-Q100 certification and ASIL B-level functional safety. Its advanced RTK/IMU fusion algorithm delivers unmatched navigation accuracy, even in obstructed environments like tunnels. Featuring a range of communication interfaces, including Ethernet, CAN/CAN FD, RS232, and PPS, it supports a variety of applications across industries such as robobus, robotaxi, and logistics vehicles. Experience continuous, reliable positioning in the most complex scenarios.

Key Features:
GPS L1/L2/L5, BeiDou B1/B2/B3, GLONASS G1/G2,
Galileo E1/E5a/E5b, QZSS, IRNSS, SBAS
High-reliability Automotive-grade Design
Support GNSS+INS Navigation
High Positioning and Attitude Performance
Up to 100Hz Data Outputs
Support External Odometer
Internal Adaptive Anti-interference Algorithm

View full details
Signal trackingGPS: L1C/A, L2P, L2C, L5, L1C*
BDS: B1I, B2I, B3I, B1C*, B2a, B2b*
GLONASS: G1, G2
Galileo: E1, E5b, E5a, E5 AltBoC*, E6C*
QZSS: L1C/A, L2C, L5, L1C*
SBAS: L1C/A, L5
IRNSS: L5
Cold Start< 20s
Hot Start< 10s
Signal reacquisition< 1s
RTK Initialization time5s
Initialization Reliability99.9%
PPP Convergence Time20min
Velocity accuracy0.02 m/s
Time Accuracy20ns
Heading Accuracy0.15°/R1
Single Baseline RTK8 mm + 1 ppm Horizontal
15 mm + 1 ppm Vertical
PPP0.1m Horizontal
0.2m Vertical
Standalone1.5m Horizontal
3m Vertical
Size (L x W x H)134mm×98mm×30.2mm
Weight374±20g
Power consumption3W
Input voltage5V~32V
Operating temperature-40 °C to + 85 °C
Storage temperature-55 °C to + 95 °C
Humidity100% non-condensing
WaterproofIEC 60529 IPX2
DustproofIEC 60529 IP5X
VibrationJESD22-B103
LNA Power External+3.3V@(0-100) mA
LNA Gain20 ~ 35dB
Impedance Matching50Ω
External InterfaceOn-board Ethernet*1,
CAN/CAN FD*2,
RS232 serial port*2,
PPS*1
Antenna Interface2*GNSS antenna interface (Fakra-A, Fakra-C)
