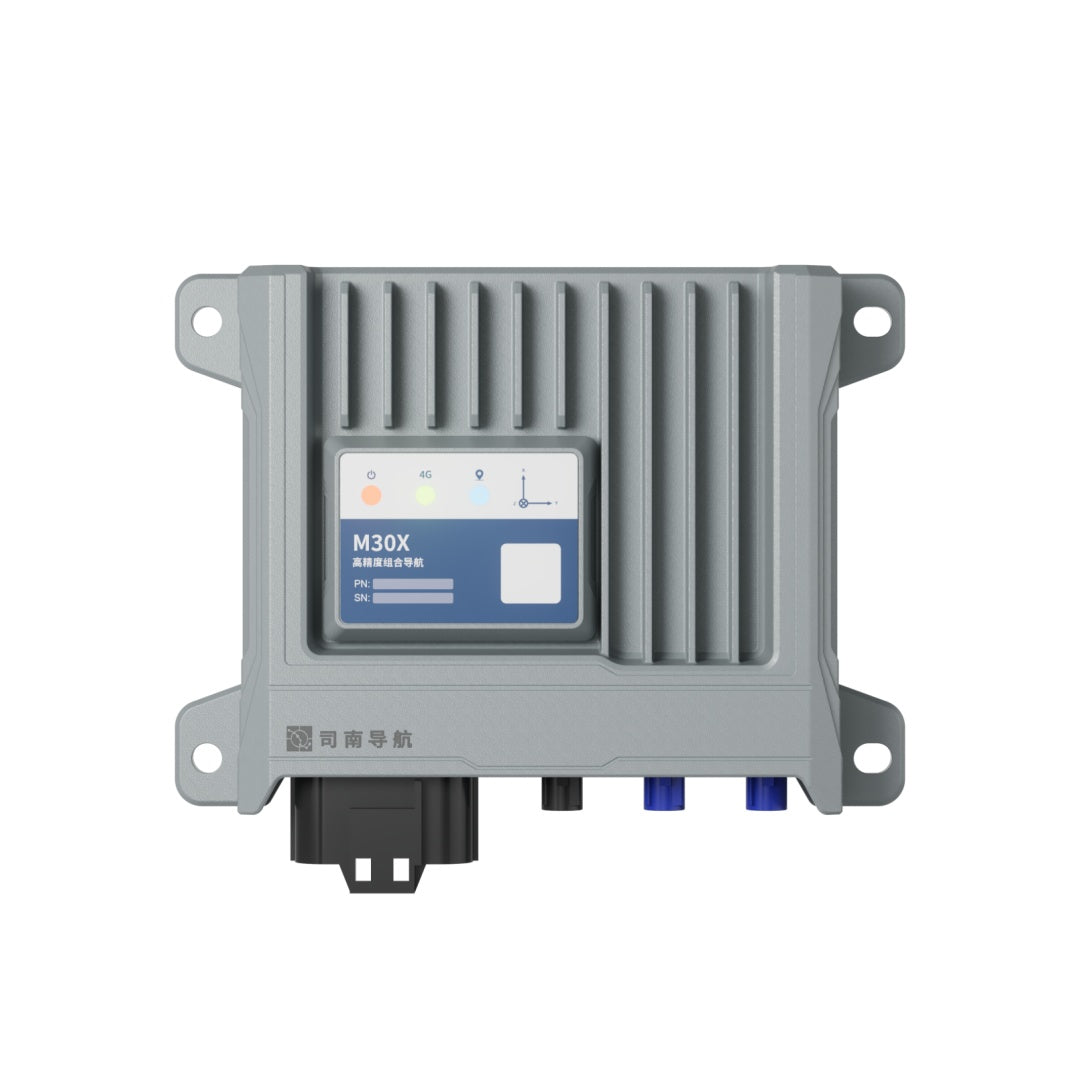

• Qtalis M30X Receiver Top View

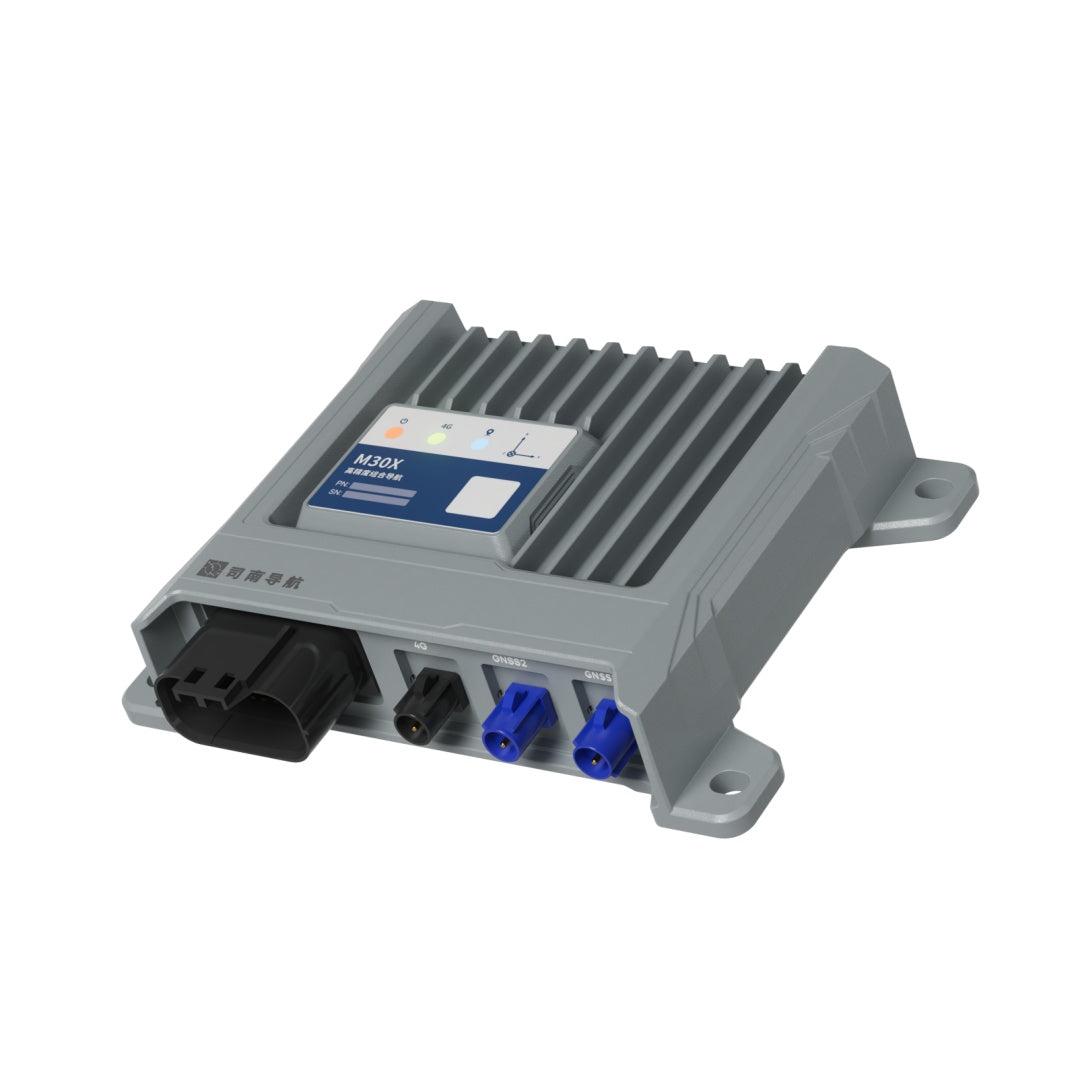

  • Qtalis M30X Receiver Side View

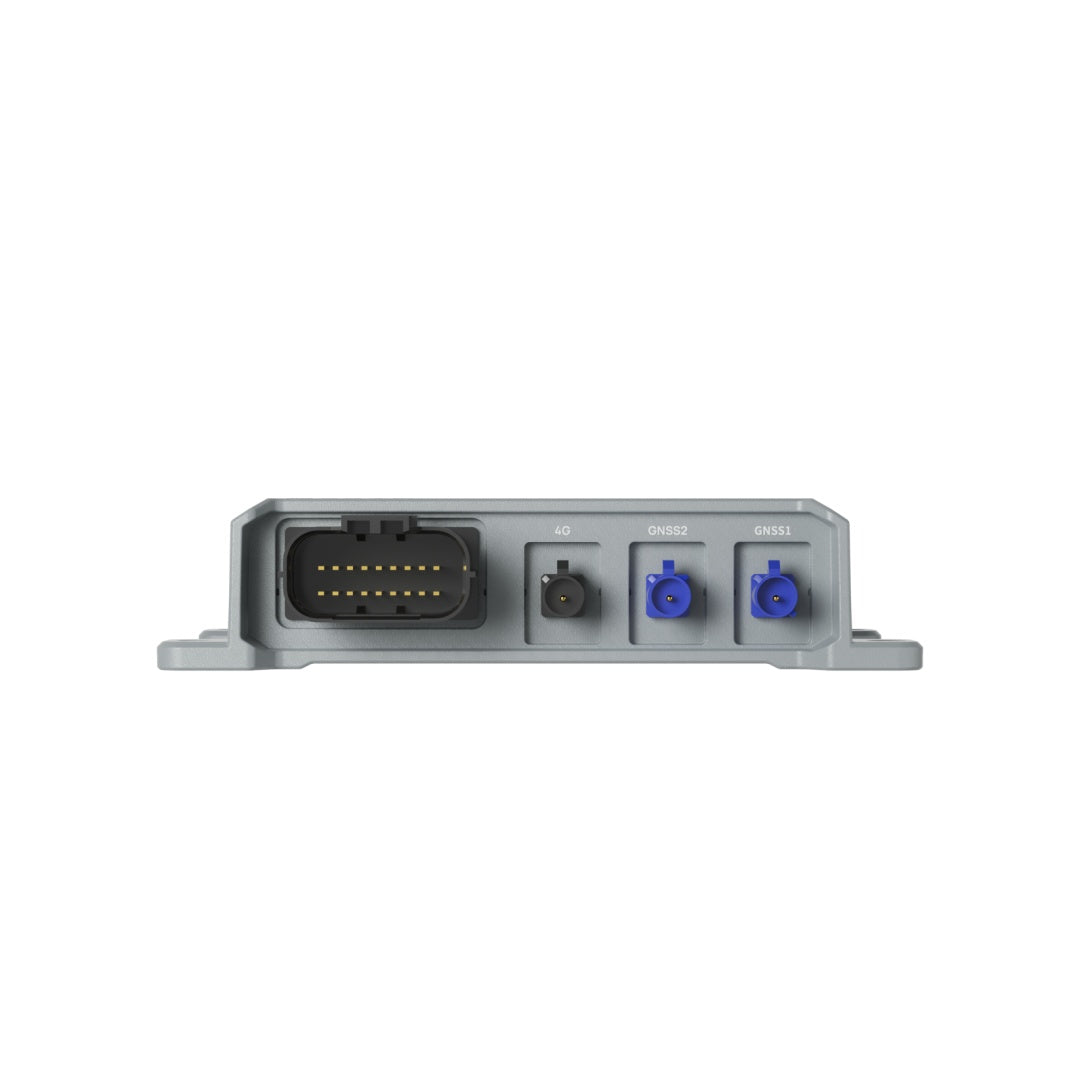

  • Qtalis M30X Receiver Front View
1 3

Qtalis

M30X GNSS/INS Receiver

High-Precision Navigation Receiver with Integrated IMU

M30X GNSS/INS Receiver

$1,999.00 USD
$1,999.00 USD
Sale Sold out
Shipping calculated at checkout.
ⓘ

Volume Pricing & OEM Support

Bulk pricing, OEM customization, and system integration.

Request a Quote
  • Global Shipping
  • 1-Year Warranty
  • Engineering Support

The M30X GNSS/INS Receiver is a high-performance positioning and navigation solution designed for demanding autonomous and industrial applications. Featuring full-constellation GNSS tracking, an automotive-grade IMU, and advanced GNSS+INS fusion algorithms, it delivers reliable positioning, velocity, and attitude data even in challenging environments. With up to 100 Hz output, built-in anti-interference technology, and 4G/Bluetooth connectivity, the M30X is ideal for autonomous driving, robotics, intelligent transportation, and smart logistics systems.

Key Features

  • Full-constellation GNSS support with multi-frequency tracking
  • Integrated high-precision IMU for GNSS+INS navigation
  • Automotive-grade design for enhanced reliability
  • Up to 100 Hz positioning and attitude output
  • Built-in adaptive anti-interference technology
  • 4G cellular and Bluetooth 5.1 connectivity
  • Professional App for Easy Configuration

Helpful Documentation

📄
Datasheet
📘
Manual
View full details
Signal trackingGPS: L1C/A, L2P*, L2C, L5, L1C*
BDS: B1I, B2I, B3I, B1C*, B2a, B2b
GLONASS: G1, G2, G3*
Galileo: E1, E5a, E5b, E5 AltBOC*, E6C
QZSS: L1C/A, L2C, L5, L1C*
SBAS: L1C/A, L5
NavIC: L5*
Cold Start<30 s
Hot Start<10 s
Signal reacquisition<1 s
RTK Initialization time5 s
Initialization Reliability99.9%
PPP Convergence Time20 min
Velocity accuracy0.02 m/s
Time Accuracy20 ns
Heading Accuracy0.15 °/R¹
Single Baseline RTK8 mm + 1 ppm Horizontal
15 mm + 1 ppm Vertical
PPP0.1 m Horizontal
0.2 m Vertical
Standalone1.5 m Horizontal
3 m Vertical
Size (L x W x H)134 mm×98 mm×30.2 mm
Weight380 g
Power consumption≤5 W
Input voltage6 V~32 V
(Standard 12V DC Power Input）
Operating temperature-40 °C to + 85 °C
Storage temperature-40 °C to + 85 °C
Humidity95% non-condensing
Protection RatingIP52
VibrationJESD22-B103
LNA Power External+3.3V @(0-100) mA
LNA Gain20 ~ 35 dB
Impedance Matching50 Ω
External InterfaceOn-board Ethernet*1
CAN/CAN FD*2, PPS*1
RS232 serial port*2, USB(2.0)*1
GNSS antenna interface (Fakra-C)*2
4G antenna interface (Fakra-A)*1
4G ModuleLTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28
LTE-TDD: B38/B39/B40/B41
WCDMA: B1/B2/B4/B5/B6/B8/B19
GSM: B2/B3/B5/B8
Ethernet100 Mbps Automotive Ethernet
BluetoothBLE 5.1, 2.4 GHz
Built-in Storage8 GB
Data RateGNSS Raw Observation: 1 Hz, 2 Hz, 5 Hz, 10 Hz, 20 Hz*, 50 Hz*
RTK Positioning: 1 Hz, 2 Hz, 5 Hz, 10 Hz, 20 Hz*, 50 Hz*
GNSS+INS Positioning:100 Hz (200 Hz Optional)
IMU Raw Data Rate:100 Hz(200 Hz Optional)
Data FormatNMEA-0183: GPGGA, GPGSV, GPGLL, GPGSA, GPGST, GPHDT, GPRMC, GPVTG, GPZDA
Custom ASCII: INSPVA, INSPVAX, BESTPOS
RTCM3.X:1004~1008,1012,1019,1020,1033,1042,1045/1046,1230
MSM3~MSM7: 1073~1077,1083~1087,1123~1127,1093~1097
Gyroscope² Range: ±300 °/s
Zero Bias Instability: 0.5 °/h
Angular Random Walk: 0.03 °/√h
Accelerometer² Range: ±8 g
Zero Bias Instability: 20 μg
Velocity Random Walk: 0.036 m/s/√h
Integrated Navigation Loss of Lock Horizontal Position Drift: ≤8‰ @1km/60s
Loss of Lock Horizontal Position Drift(with DMI): ≤2‰ @1km/60s
Loss of Lock Heading Drift: 0.15° @60s
Fix Recovery Time: ≤5 s
