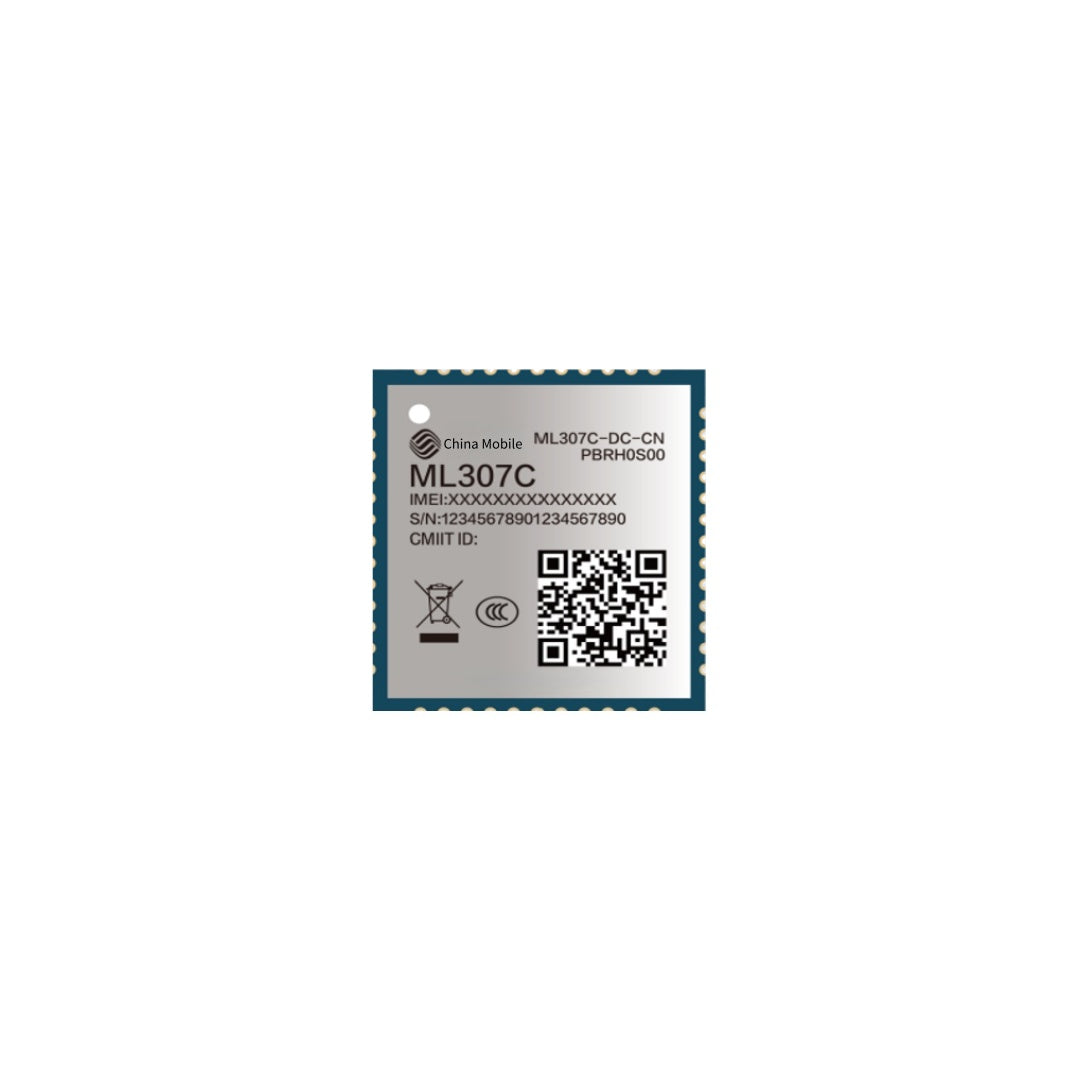

• Qtalis ML307C Cat.1 Module
1 1

Qtalis

ML307C Cat.1 Module

ML307C Cat.1 Module

$199.00 USD
$199.00 USD
Sale Sold out
Shipping calculated at checkout.
ⓘ

Volume Pricing & OEM Support

Bulk pricing, OEM customization, and system integration.

Request a Quote
  • Global Shipping
  • 1-Year Warranty
  • Engineering Support

The ML307C Cat.1 Module is a compact and cost-effective LTE communication module designed for IoT applications requiring reliable connectivity and flexible data transmission. With global band support, CE certification, and rich peripheral interfaces, it enables seamless integration into a wide range of devices. Its small form factor and high compatibility make it ideal for smart finance, asset tracking, shared mobility, smart metering, and surveillance applications.

Key Features

  • LTE Cat.1 communication for stable and efficient data transmission
  • Compact size design for space-constrained applications
  • Supports global frequency bands for worldwide deployment
  • Rich peripheral interfaces for flexible integration
  • Compatible with ML307A / ML307R series
  • Supports mainstream IoT protocols and platforms
View full details
Qtalis ML307C Cat.1 Module Suitable Applications

Applications

  • Smart POS / smart finance devices
  • Shared mobility (e-bike / scooter systems)
  • Asset tracking & positioning
  • IoT surveillance cameras
  • Smart meters and industrial IoT

Size17.7 × 15.8 × 2.2 mm
WeightApprox. 1.2 g
Operating Temperature-30°C to +75°C
Extended Temperature-40°C to +85°C
PackageLGA
Communication StandardLTE Cat.1
Frequency BandsLTE-TDD: B34 / B38 / B39 / B40 / B41
LTE-FDD: B1 / B3 / B5 / B7 / B8 / B20 / B28
Data RateLTE-TDD: Max.9Mbps(DL)/Max.3Mbps(UL)
LTE-FDD: Max.10Mbps(DL)/Max.5Mbps(UL)
SMSSupported
ProtocolsIPv4 / IPv6 / PING / NTP / DNS / TCP / UDP / HTTP / HTTPS / MQTT / MQTTS / FTP / LwM2M
InterfacesUSB 2.0
USIM ×2
UART ×3
ADC ×2
I2C ×2
SPI ×2
AudioDigital Audio (PCM)
Key FeaturesFOTA (Firmware Over-the-Air)
Firmware Upgrade Supported
Audio Playback & Recording
Wi-Fi Scan
Drivers & OS SupportRIL Driver: Android 7.x / 8.x / 9.x / 10.x / 11.x
RNDIS Driver: Windows 7 / 10
USB Serial Driver: Windows 7 / 10
Supply Voltage3.4 – 4.5 V (Typ. 3.8 V)
Power ConsumptionTBD
CertificationsCCC / SRRC / NAL / RoHS / CE
ApplicationsLocation tracking, financial payments, smart metering, shared economy devices, and other IoT applications.
