• Qtalis ML307N Cat1 Module
1 1

Qtalis

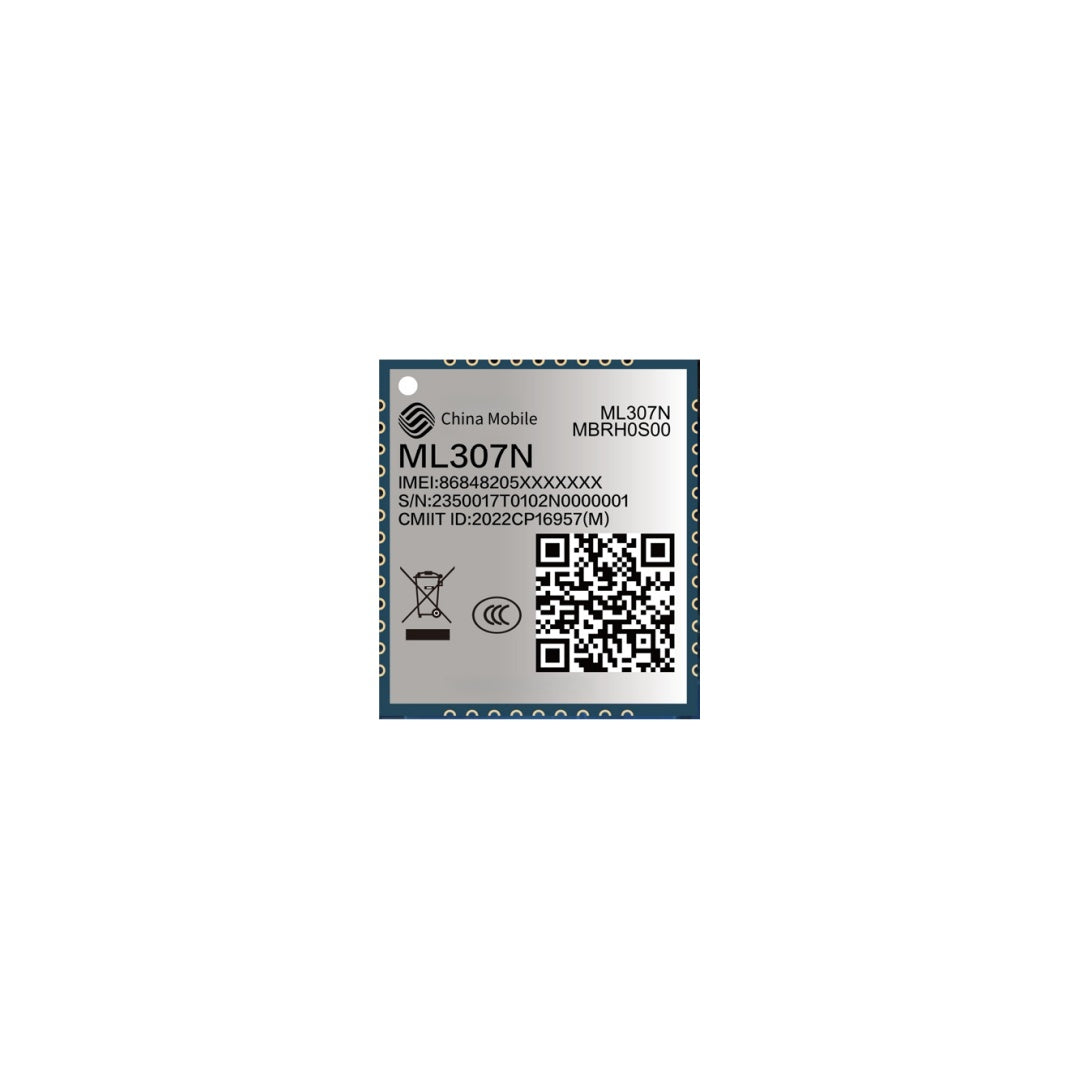

ML307N Cat.1 Module

ML307N Cat.1 Module

$299.00 USD
$299.00 USD
Sale Sold out
Shipping calculated at checkout.
  • Global Shipping
  • 1-Year Warranty
  • Engineering Support

The ML307N Cat.1 Module is a high-performance, low-power LTE communication module built on a RISC-V architecture, designed for next-generation IoT applications. With support for low-voltage input, rich peripheral interfaces, and global compatibility, it enables flexible and reliable connectivity across diverse scenarios. Select models integrate GNSS positioning capabilities, making it ideal for applications requiring both communication and location tracking, such as smart metering, asset tracking, shared mobility, and IoT surveillance.

Key Features
LTE Cat.1 connectivity for reliable and efficient data transmission
RISC-V architecture for enhanced performance and power efficiency
Supports low-voltage input down to 2.2V, ideal for battery-powered devices
Optional integrated GNSS for combined positioning and communication
Rich interfaces including USB, UART, SPI, and PCM
Compact LCC + LGA package for easy integration



View full details
Qtalis ML307N Cat1 Module Suitable Applications

Applications

  • Smart POS / smart finance devices
  • Shared mobility (e-bike/scooter systems)
  • Asset tracking & positioning
  • IoT surveillance cameras
  • Smart meters (water/gas/electricity)
Size17.7mm×15.8mm×2.4mm
WeightApprox. 1.2 g
Operating Temperature-30°C to +75°C
Extended Temperature-40°C to +85°C
PackageLCC + LGA
Communication StandardLTE Cat.1
Frequency BandsLTE-TDD: B34 / B38 / B39 / B40 / B41
LTE-FDD: B1 / B3 / B5 / B8
Data RateLTE-TDD: DL 7.5 Mbps / UL 1 Mbps
LTE-FDD: DL 10 Mbps / UL 5 Mbps
SMSSupported
ProtocolsIPv4 / IPv6 / PING / SNTP / DNS / TCP / UDP / SSL / HTTP / HTTPS / MQTT / MQTTS / FTP
InterfacesUSIM ×2
UART ×2
ADC ×1
I2C ×2
SPI ×1
AudioDigital Audio (PCM)
Analog Audio (Playback)
Key FeaturesFOTA (Firmware Over-the-Air)
Firmware Upgrade Supported
GNSS (Positioning Support)
OpenCPU
Wi-Fi Scan
SIM Insertion Detection
Supply Voltage3.2 – 4.5 V (Typ. 3.8 V)
Power ConsumptionTBD
CertificationsCCC / SRRC / NAL
