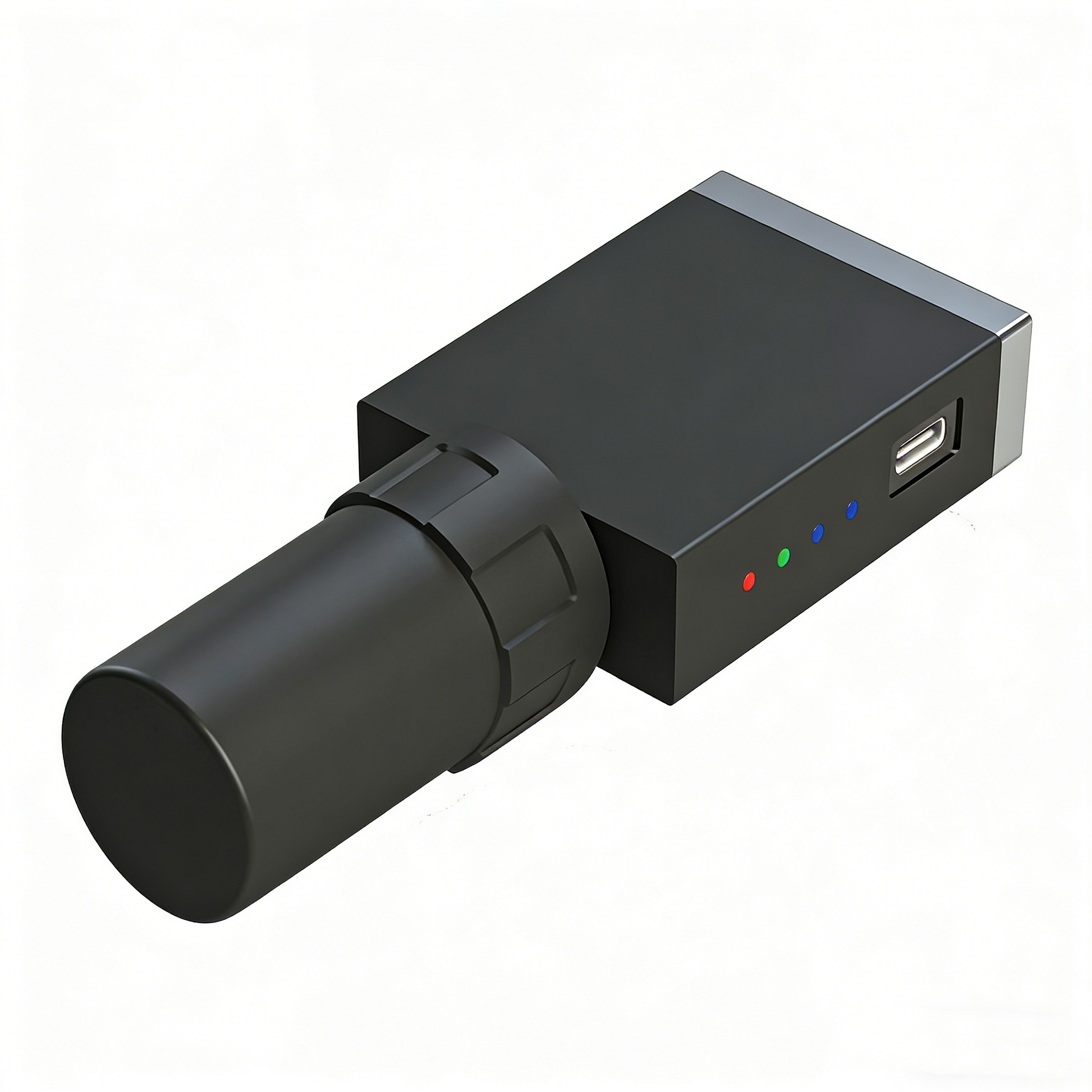

• Qtalis Pocket M1 Main Picture

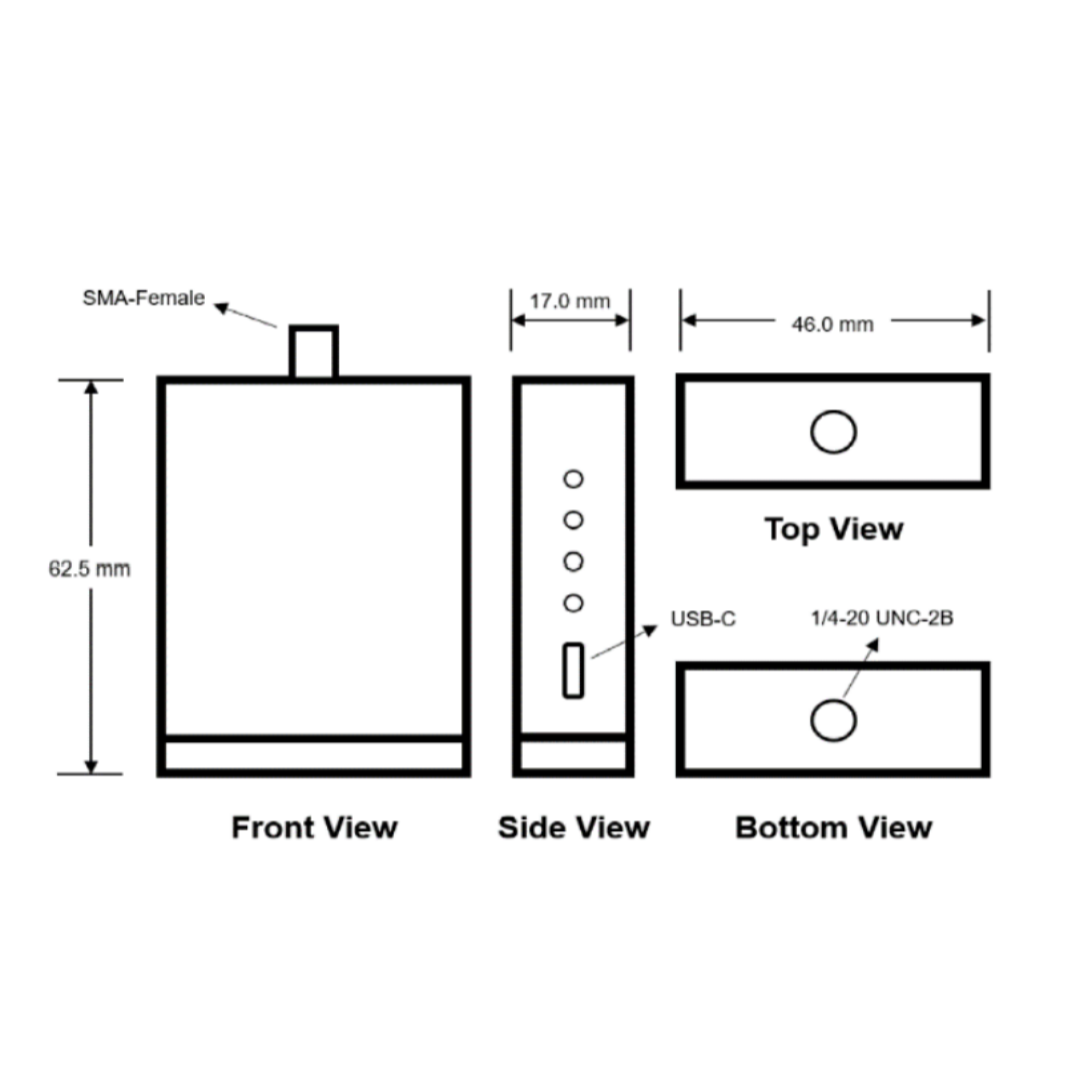

  • Qtalis Pocket M1 Specification

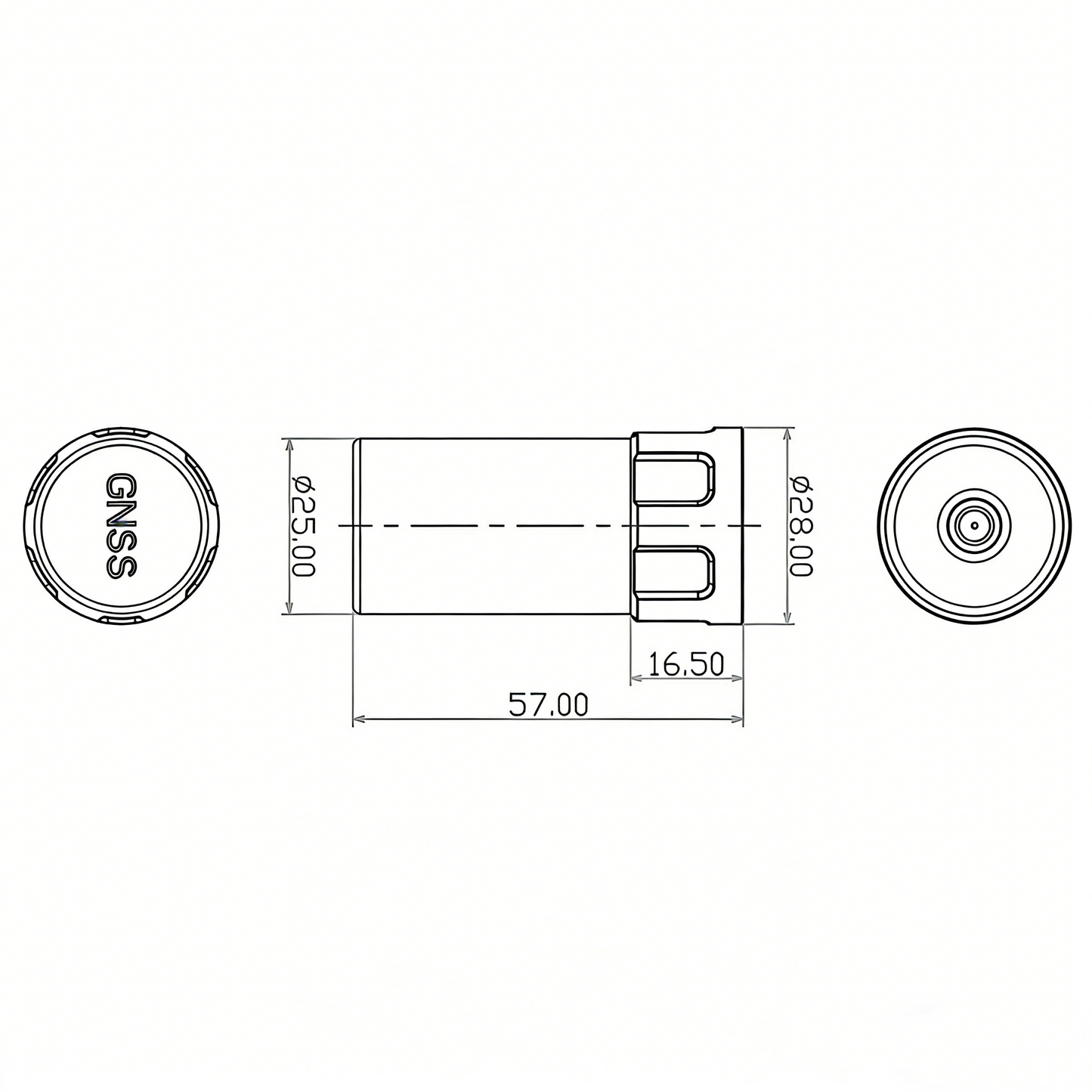

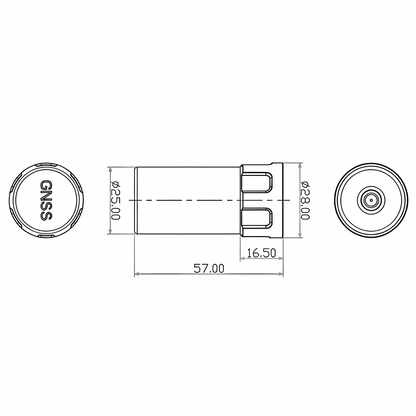

  • Qtalis Pocket M1 All Views
1 3

Qtalis

Pocket M1 GNSS Receiver

Pocket M1 GNSS Receiver

$599.00 USD
$599.00 USD
Sale Sold out
Shipping calculated at checkout.
ⓘ

Volume Pricing & OEM Support

Bulk pricing, OEM customization, and system integration.

Request a Quote
  • Global Shipping
  • 1-Year Warranty
  • Engineering Support

The Pocket M1 GNSS Receiver is a compact, portable, and high-performance positioning solution designed for professionals who need centimeter-level accuracy in a lightweight form factor. Supporting multi-constellation and triple-frequency GNSS, Pocket M1 delivers reliable RTK and PPP performance for surveying, mapping, robotics, UAVs, and precision applications.

With built-in Bluetooth Low Energy and a detachable portable design, Pocket M1 is easy to deploy in both field and mobile environments—without compromising accuracy or stability.

Key Features

  • Supports GPS, GLONASS, Galileo, and BeiDou constellations
  • Triple-frequency RTK positioning for enhanced accuracy and faster convergence
  • Supports PPP (HAS / B2b) services
  • Compact and detachable portable design
  • Built-in low-power Bluetooth for wireless data transmission
  • Ideal for mobile, handheld, and field-based applications

Helpful Documentation

📄
Datasheet
View full details
GPSL1, L2, L5
GLONASSG1, G2, G3
GalileoE1, E5a, E5b, E6
BeidouB1, B2, B3, B1C, B2a, B2b
QZSSL1, L2, L5
SBASWAAS, EGNOS, MSAS, GAGAN, SDCM
IRNSSL5
PPPHAS, B2b
Post-processing2.5 mm + 0.5 ppm Horizontal
5 mm + 0.5 ppm Vertical
RTK8 mm + 1 ppm Horizontal
15 mm + 1 ppm Vertical
SBAS0.6 m 3D RMS
Standalone1.5 m 3D RMS
PPP10 cm Horizontal
20 cm Vertical
USB-C1
Antenna ConnectorSMA Female
Screw Hole1/4-20 UNC-2B
BluetoothBLE
LED4
Input Voltage5 VDC
Power Consumption1.1 W
