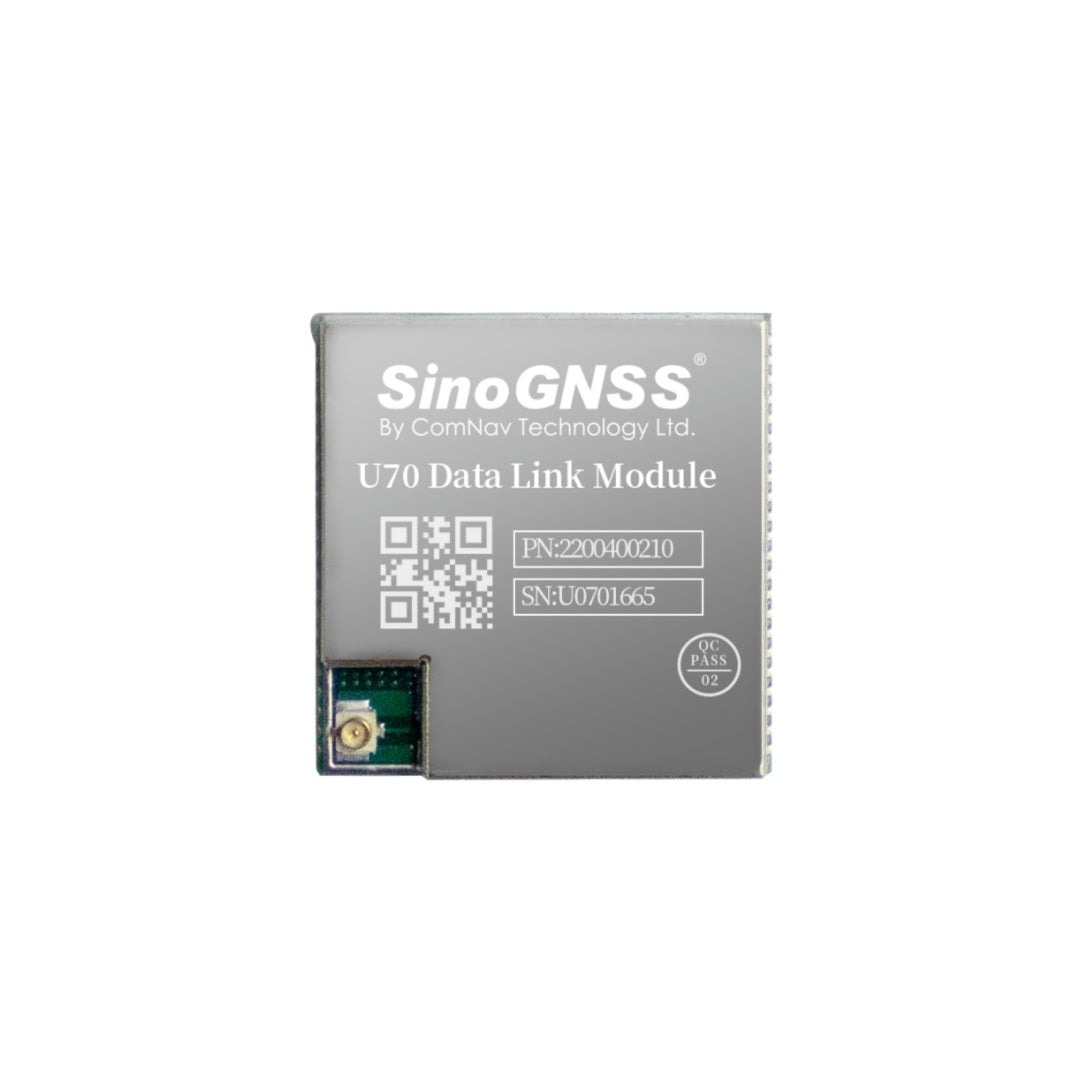

• Qtalis U70 Datalink Module Top View

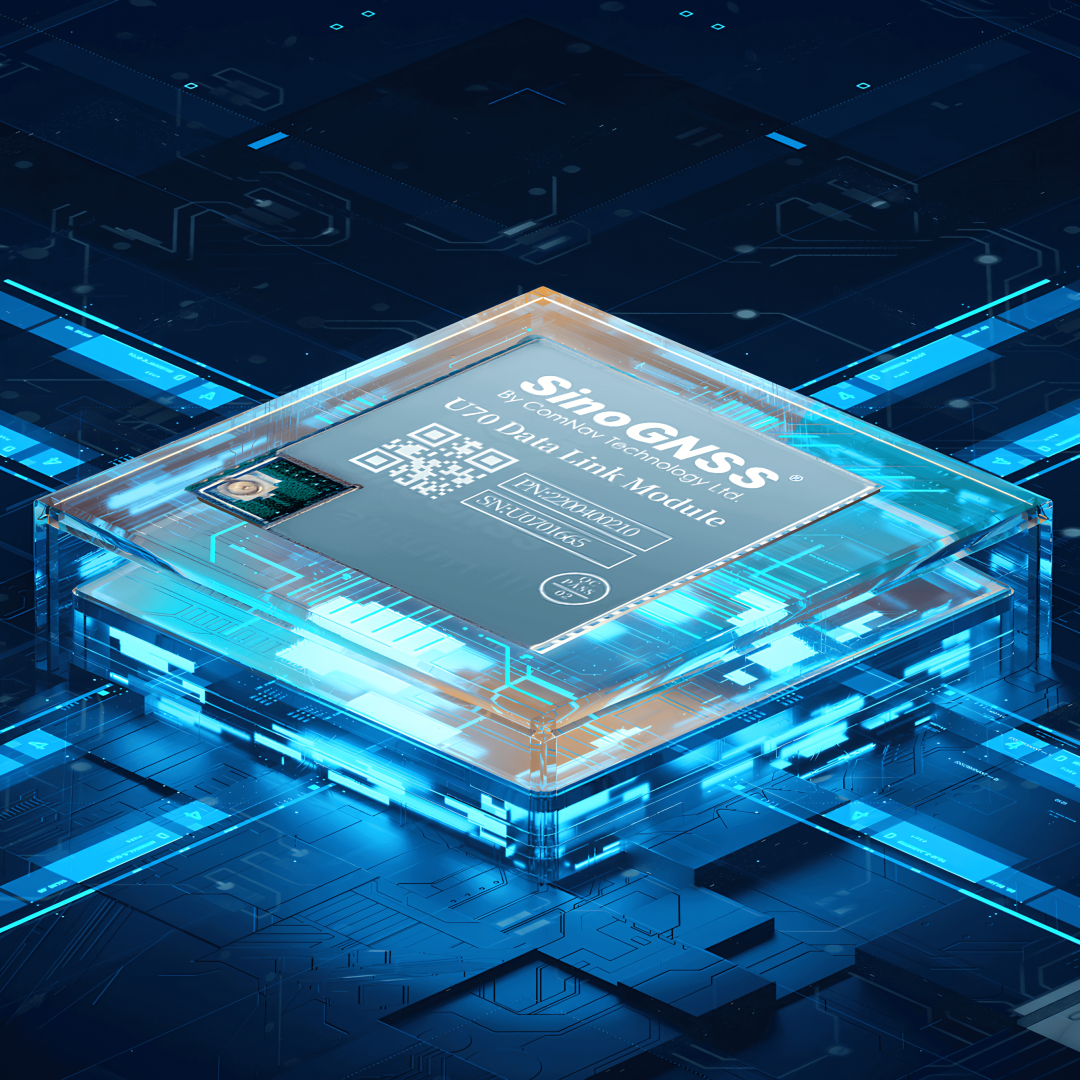

  • Qtalis U70 Datalink Module Optical Fiber Interface
1 2

Qtalis

U70 Datalink Module

U70 Datalink Module

$119.00 USD
$149.00 USD $119.00 USD (20% off)
Sale Sold out
Shipping calculated at checkout.
ⓘ

Volume Pricing & OEM Support

Bulk pricing, OEM customization, and system integration.

Request a Quote
  • Global Shipping
  • 1-Year Warranty
  • Engineering Support

The U70 LoRa Datalink Module is a compact 410–470 MHz RX/TX wireless module with 12.5 kHz channel spacing, designed for GNSS applications. Its surface-mounted (SMD) design and small 30×30 mm size enable easy integration into GNSS receivers, OEM boards, and embedded systems. Supporting LoRa modulation, the U70 delivers long-range, low-power wireless communication, making it ideal for surveying, UAVs, robotics, precision agriculture, and other high-accuracy positioning applications.

Key Features

  • Support LoRa for Long Work Range & Low Power Consumption
  • Work as TX/RX Mode
  • Adjustable Frequency from 410 to 470 MHz
  • Surface-Mounted Design and Small Size for Easy Integration

Helpful Documentation

📄
Datasheet
View full details
Frequency Range410-470 MHz
Work ModeHalf-duplex
Frequency Stability1.5ppm
Modulation SystemCSS
Air Baud Rate500bps/ 11000bps/ 12500bps/ 15500bps/ 18000bps
Protocol TypeLoRa
Size (with connector)30×30×3mm
Weight8g
Power Supply+3.3V ~ +3.6V DC
Emission Current< 2A
Received Power50 mA
Transmit Power0.5W/1W/2W
Operating Temperature-40℃ to +75℃
Storage Temperature-50℃ to +85℃
I/O InterfaceLGA 2×22 pin, pin pitch
DTE-DCE Interface1.27mm 3 × LVCMOS 3.3V
Antenna InterfaceIPEX female connector
